TOYOTA LAND CRUISER 200 202 VDJ200R-GNTEZW / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

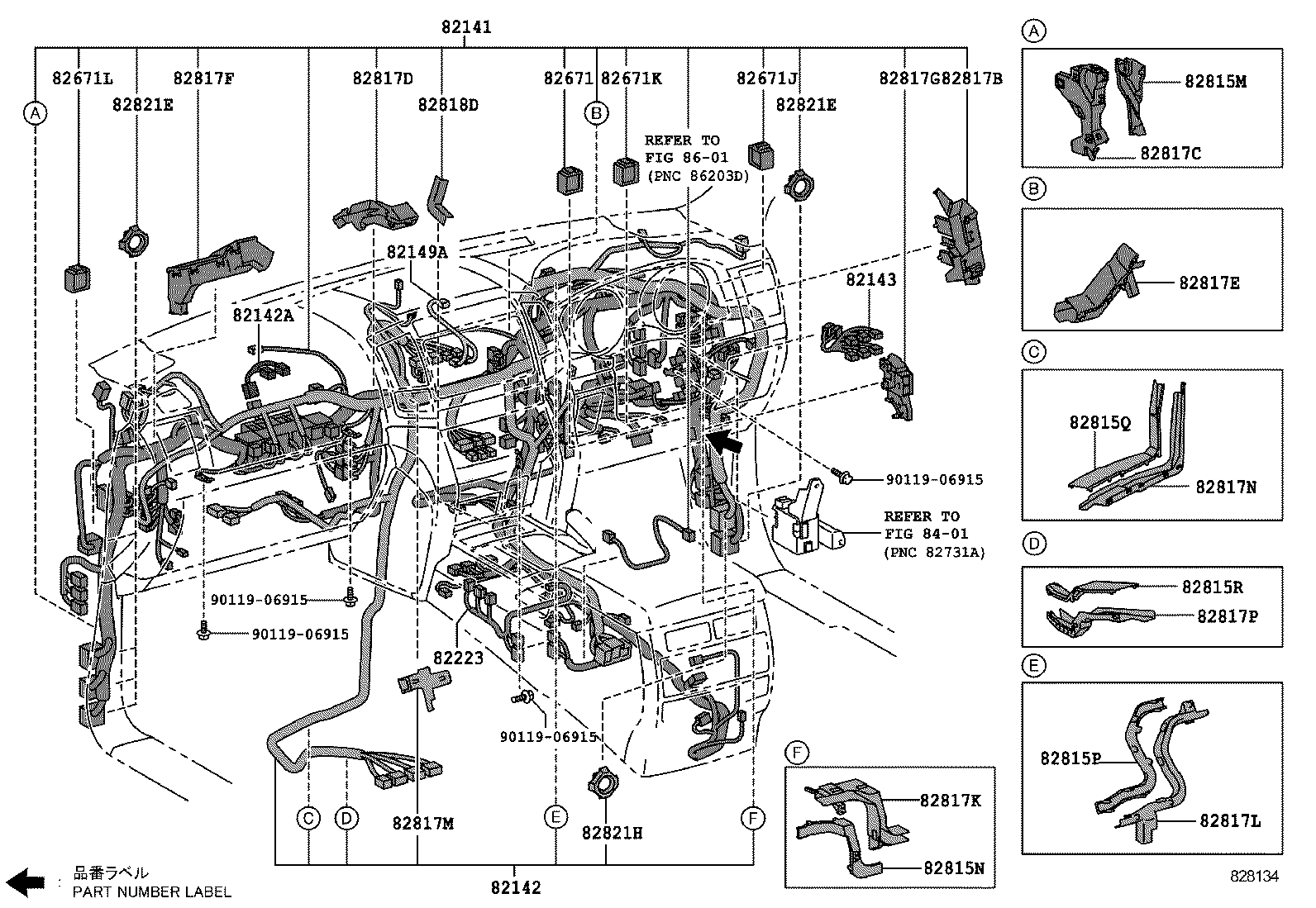

INSTRUMENT PANEL & CONSOLE BOX ILLUST NO. 4 OF12(1201- )RHD

 LAND CRUISER 200 202 |  WIRING CLAMP 82141 - WIRE, INSTRUMENT PANEL 82142 - WIRE, INSTRUMENT PANEL, NO.2 82142A - WIRE, INSTRUMENT PANEL, NO.2 82143 - WIRE, INSTRUMENT PANEL, NO.3 82149A - WIRE, INSTRUMENT PANEL, NO.5 82223 - WIRE, SWITCH 82671 - BLOCK, JUNCTION 82671J - BLOCK, JUNCTION, NO.2 82671K - BLOCK, JUNCTION, NO.3 82671L - BLOCK, JUNCTION, NO.4 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817D - PROTECTOR, WIRING HARNESS, NO.5 82817E - PROTECTOR, WIRING HARNESS, NO.6 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817G - PROTECTOR, WIRING HARNESS, NO.8 82817K - PROTECTOR, WIRING HARNESS, NO.10 82817L - PROTECTOR, WIRING HARNESS, NO.11 82817M - PROTECTOR, WIRING HARNESS, NO.12 82817N - PROTECTOR, WIRING HARNESS, NO.13 82817P - PROTECTOR, WIRING HARNESS, NO.14 82818D - PROTECTOR, WIRING HARNESS, NO.5 82821E - COVER, CONNECTOR 82821E - COVER, CONNECTOR 82821H - COVER, CONNECTOR ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part
