TOYOTA VERSO WAR20R-GWFDYW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

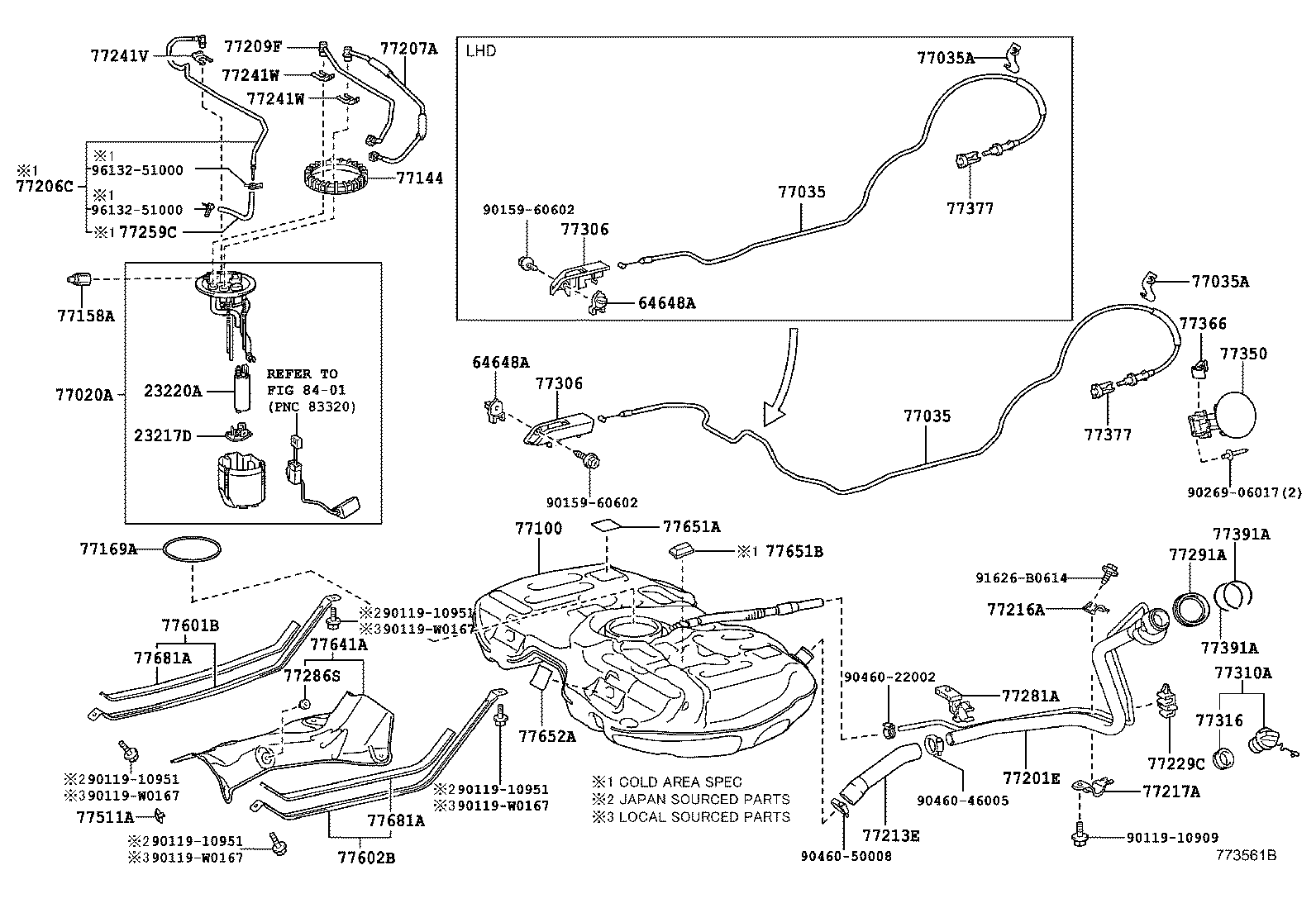

FUEL TANK ILLUST NO. 1 OF 2(1405- )WAR20

VERSO | FUEL TANK TUBE 23217D - FILTER, FUEL PUMP 23220A - PUMP ASSY, FUEL W/FILTER 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77158A - SUPPORT, TANK SUCTION TUBE 77169A - GASKET, FUEL SUCTION TUBE SET 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77207A - TUBE SUB-ASSY, FUEL RETURN 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77213E - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77229C - CLAMP, BREATHER TUBE 77241V - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77259C - HOSE, FUEL 77281A - CLAMP, FUEL FILLER PIPE 77286S - CUSHION, FUEL TANK PROTECTOR 77291A - SHIELD, FUEL TANK FILLER PIPE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391A - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77511A - BRACKET, FUEL TANK 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651B - CUSHION, FUEL TANK 77652A - CUSHION, FUEL TANK, NO.2 77681A - SEAT, FUEL TANK BAND 77681A - SEAT, FUEL TANK BAND ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
