TOYOTA YARIS HYBRID FRP NHP130L-CHXGBW / POWERTRAIN-CHASSIS / TRANSAXLE ASSY HYBRID VEHICLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

TRANSAXLE ASSY HYBRID VEHICLE

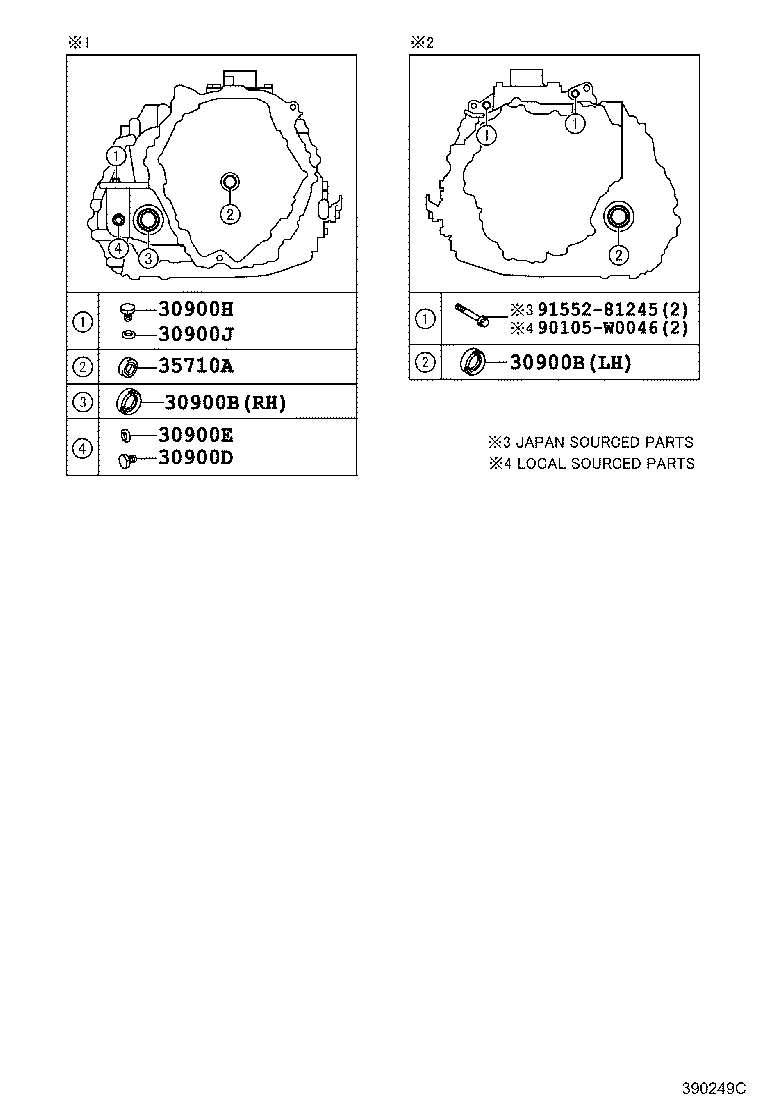

ILLUST NO. 2 OF 2(1204- )NHP130

YARIS HYBRID FRP | TRANSAXLE ASSY HYBRID VEHICLE 30900B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) 30900B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) 30900D - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE) 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) 30900H - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE) 30900J - GASKET, NO.3(FOR TRANSAXLE HOUSING & CASE) 35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT) ** Std Part ** Std Part
