TOYOTA YARIS JPP NSP130R-AHXNKW / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

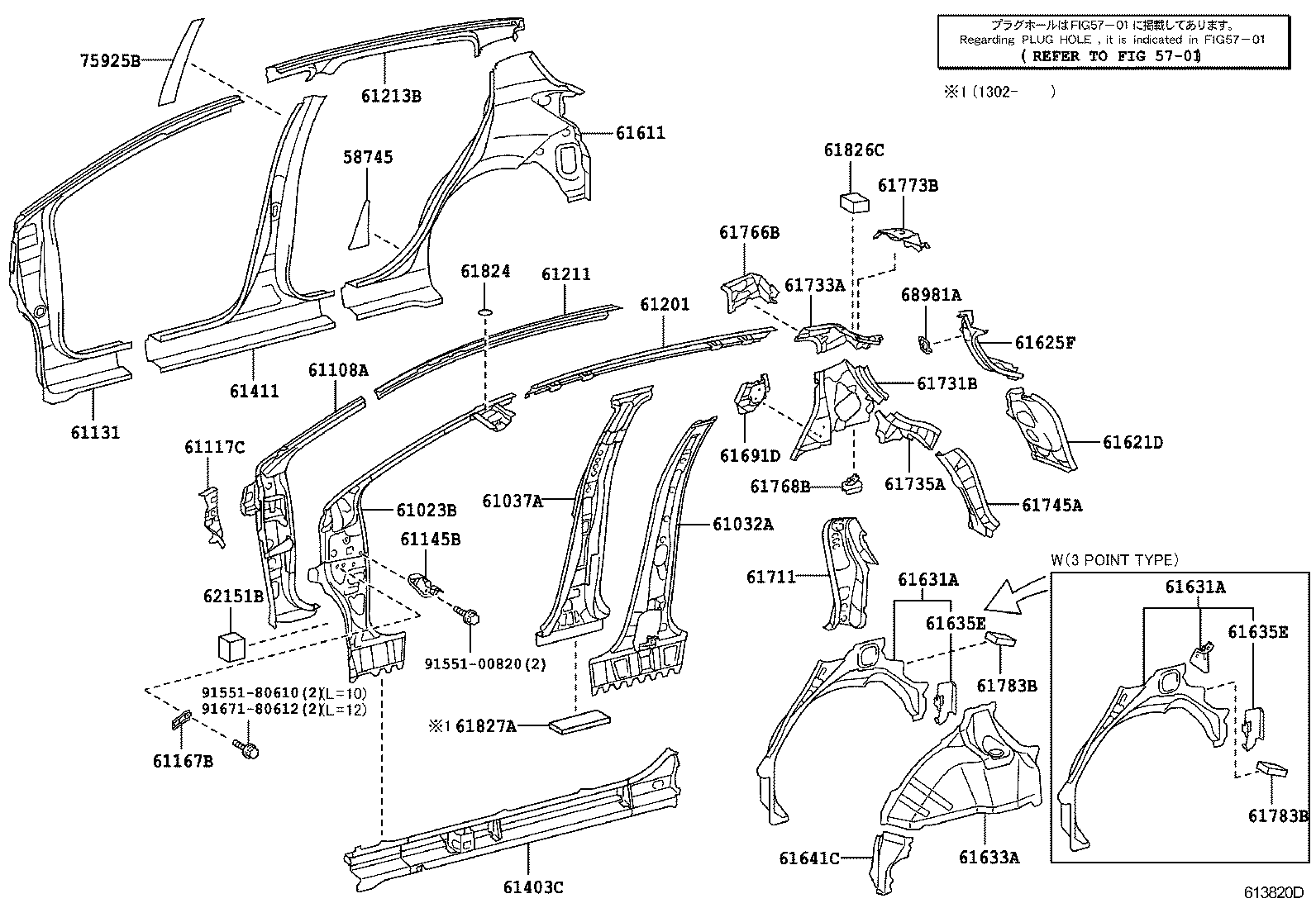

SIDE MEMBER

RH ILLUST NO. 1 OF 2(1108- )

YARIS JPP | SIDE MEMBER ** Refer Fig 58745 - PROTECTOR, QUARTER PANEL, FRONT RH 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61117C - GUSSET, SIDE PANEL TO COWL, RH 61131 - PILLAR, FRONT BODY, UPPER OUTER RH 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH 61167B - BRACE, FRONT BODY PILLAR, LOWER 61201 - RAIL SUB-ASSY, ROOF SIDE, RH 61211 - RAIL, ROOF SIDE, OUTER RH 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH 61411 - PANEL, ROCKER, OUTER RH 61611 - PANEL, QUARTER, RH 61621D - TROUGH, BACK DOOR OPENING, RH 61625F - EXTENSION, QUARTER PANEL, UPPER RH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH 61691D - REINFORCE, REAR SEAT BACK LOCK STRIKER, RH 61711 - PANEL, ROOF SIDE, OUTER RH 61731B - PANEL, ROOF SIDE, INNER RH 61733A - PANEL, ROOF SIDE, INNER FRONT RH 61735A - PANEL, ROOF SIDE, INNER REAR RH 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH 61773B - FRAME, BACK DOOR OPENING SIDE, UPPER RH 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 61824 - PLATE, NOISE CONTROL, NO.1 61826C - PAD, NOISE SHUTTER, NO.3 61827A - PLATE, NOISE CONTROL, NO.4 62151B - PAD, COWL SIDE SILENCER 68981A - RETAINER, BACK DOOR STAY, RH 75925B - TAPE, BLACK OUT, NO.3 RH ** Std Part ** Std Part ** Std Part
