TOYOTA YARIS JPP NSP130R-AHXNKW / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SIDE MEMBER

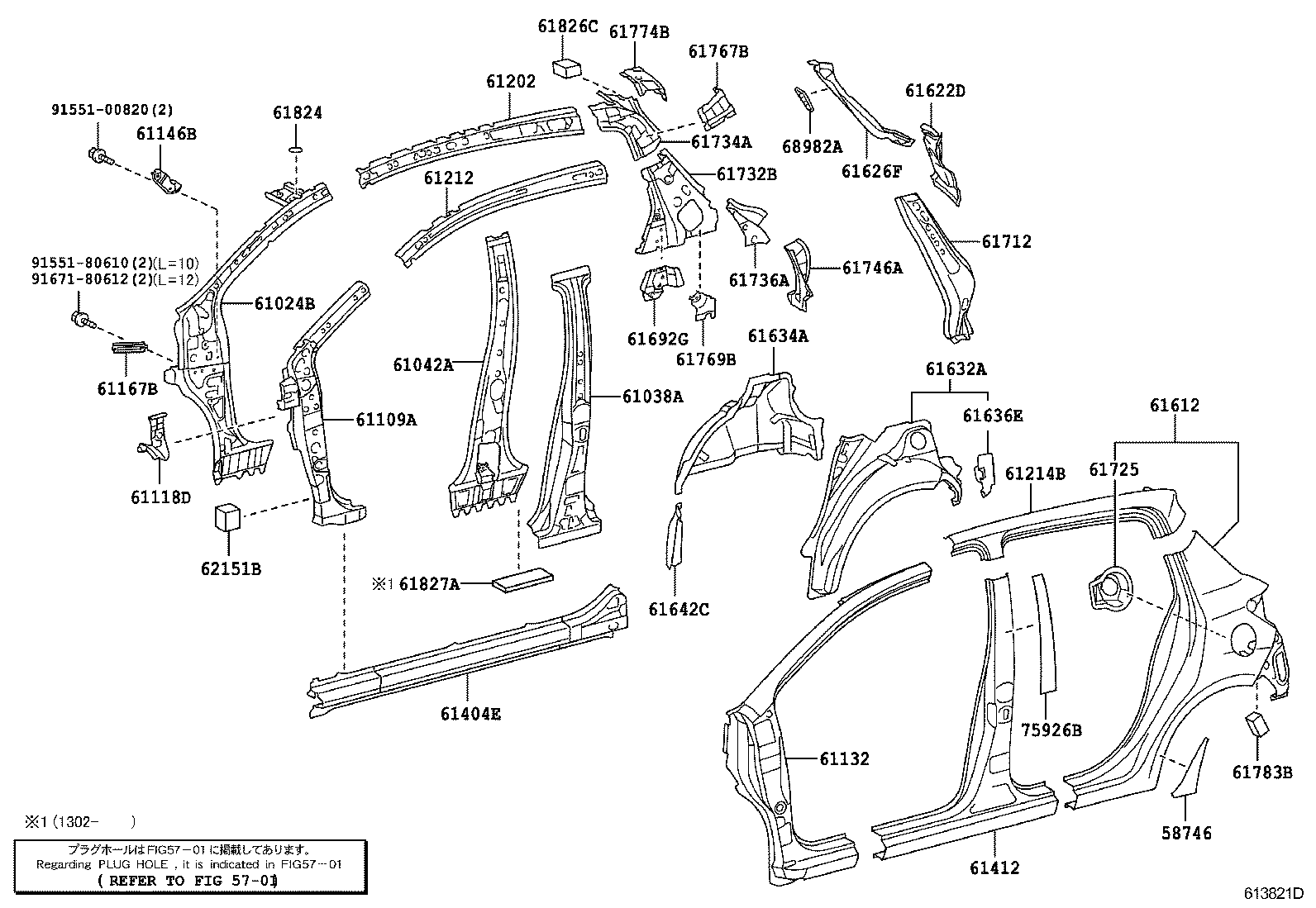

LH ILLUST NO. 2 OF 2(1108- )

YARIS JPP | SIDE MEMBER ** Refer Fig 58746 - PROTECTOR, QUARTER PANEL, FRONT LH 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61118D - GUSSET, SIDE PANEL TO COWL, LH 61132 - PILLAR, FRONT BODY, UPPER OUTER LH 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH 61167B - BRACE, FRONT BODY PILLAR, LOWER 61202 - RAIL SUB-ASSY, ROOF SIDE, LH 61212 - RAIL, ROOF SIDE, OUTER LH 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH 61412 - PANEL, ROCKER, OUTER LH 61612 - PANEL, QUARTER, LH 61622D - TROUGH, BACK DOOR OPENING, LH 61626F - EXTENSION, QUARTER PANEL, UPPER LH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH 61692G - REINFORCE, REAR SEAT BACK LOCK STRIKER, LH 61712 - PANEL, ROOF SIDE, OUTER LH 61725 - BOX, FUEL INLET 61732B - PANEL, ROOF SIDE, INNER LH 61734A - PANEL, ROOF SIDE, INNER FRONT LH 61736A - PANEL, ROOF SIDE, INNER REAR LH 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 61824 - PLATE, NOISE CONTROL, NO.1 61826C - PAD, NOISE SHUTTER, NO.3 61827A - PLATE, NOISE CONTROL, NO.4 62151B - PAD, COWL SIDE SILENCER 68982A - RETAINER, BACK DOOR STAY, LH 75926B - TAPE, BLACK OUT, NO.3 LH ** Std Part ** Std Part ** Std Part
