TOYOTA HEAVY DUTY TRUCK FA115L-H / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR AXLE HOUSING DIFFERENTIAL

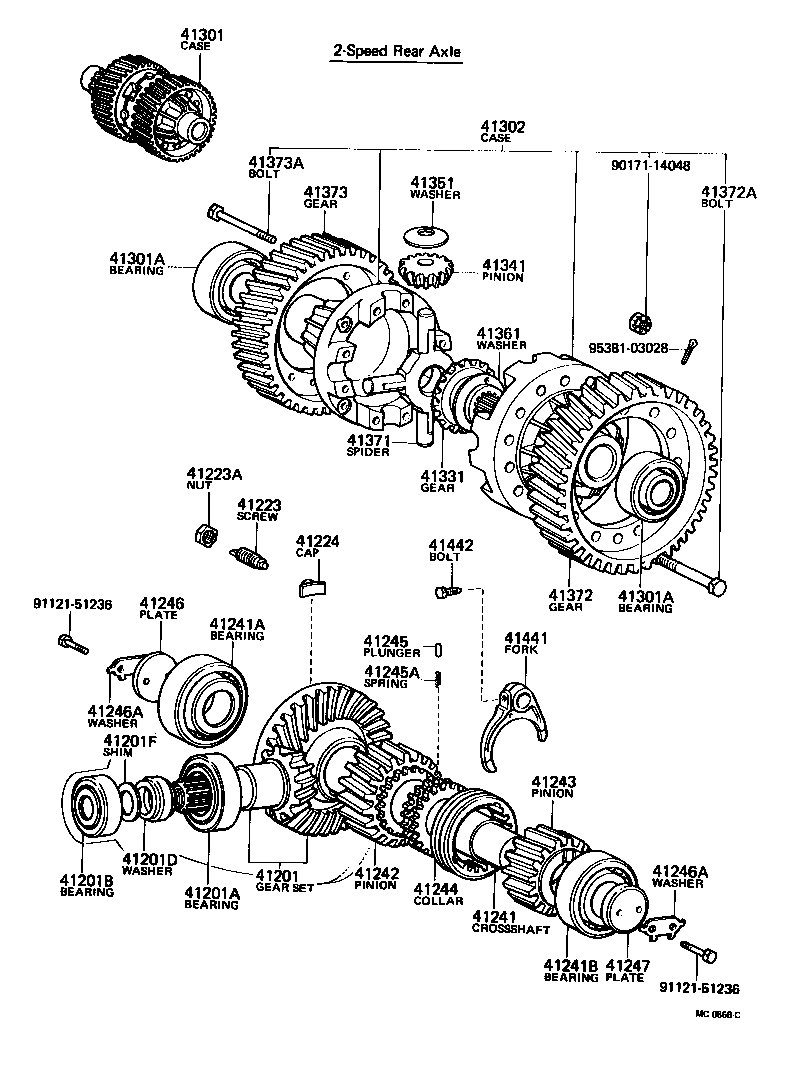

ILLUST NO. 3 OF 4(6903-7403)2SR

HEAVY DUTY TRUCK | REAR AXLE HOUSING DIFFERENTIAL 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR 41201A - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41201B - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) 41223 - SCREW, DIFFERENTIAL RING GEAR THRUST 41223A - NUT, HEXAGON (FOR RING GEAR THRUST SCREW LOCK) 41224 - CAP, DIFFERENTIAL DRIVE GEAR SCREW 41241 - CROSS SHAFT, DIFFERENTIAL 41241A - BEARING, DIFFERENTIAL CROSS SHAFT, RH 41241B - BEARING, DIFFERENTIAL CROSS SHAFT, LH 41242 - PINION, DIFFERENTIAL HIGH SPEED 41243 - PINION, DIFFERENTIAL LOW SPEED 41244 - COLLAR, DIFFERENTIAL PINION SHIFT 41245 - PLUNGER, SHIFT COLLAR LOCK 41245A - SPRING, COMPRESSION, SHIFT COLLAR 41246 - PLATE, DIFFERENTIAL CROSS SHAFT THRUST, RH 41246A - WASHER, DIFFERENTIAL CROSS SHAFT THRUST PLATE 41246A - WASHER, DIFFERENTIAL CROSS SHAFT THRUST PLATE 41247 - PLATE, DIFFERENTIAL CROSS SHAFT THRUST, LH 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL 41331 - GEAR, REAR DIFFERENTIAL SIDE 41341 - PINION, REAR DIFFERENTIAL 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 41371 - SPIDER, REAR DIFFERENTIAL 41372 - GEAR, DIFFERENTIAL LOW SPEED 41372A - BOLT, DIFFERENTIAL LOW SPEED, GEAR 41373 - GEAR, DIFFERENTIAL HIGH SPEED 41373A - BOLT, DIFFERENTIAL HIGH SPEED SET 41441 - FORK, SHIFT 41442 - BOLT OR PIN, SHIFT FORK LOCK ** Std Part ** Std Part ** Std Part ** Std Part
