TOYOTA HEAVY DUTY TRUCK FB100L-K / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

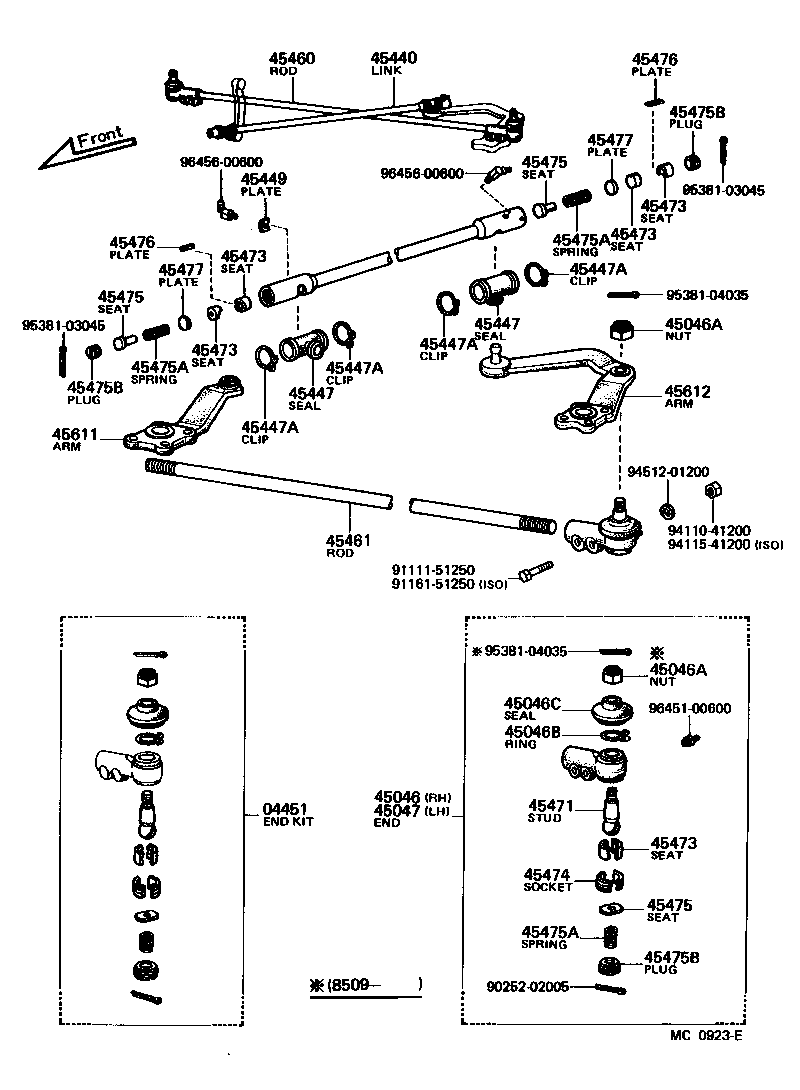

FRONT STEERING GEAR LINK

ILLUST NO. 2 OF 2(6903-7105)FB100

HEAVY DUTY TRUCK | FRONT STEERING GEAR LINK 04451 - END KIT, STEERING TIE ROD 45046 - END SUB-ASSY, TIE ROD, RH 45046A - NUT, CASTLE(FOR TIE ROD END) 45046A - NUT, CASTLE(FOR TIE ROD END) 45046B - RING, SET(FOR TIE ROD END DUST SEAL) 45046C - SEAL, DUST(FOR TIE ROD END) 45047 - END SUB-ASSY, TIE ROD, LH 45440 - LINK ASSY, STEERING DRAG 45447 - SEAL, DRAG LINK DUST 45447 - SEAL, DRAG LINK DUST 45447A - CLIP(FOR DRAG LINK DUST SEAL) 45447A - CLIP(FOR DRAG LINK DUST SEAL) 45447A - CLIP(FOR DRAG LINK DUST SEAL) 45447A - CLIP(FOR DRAG LINK DUST SEAL) 45449 - PLATE, DRAG LINK DUST SEAL 45460 - ROD ASSY, TIE, RH 45461 - ROD, STEERING TIE 45471 - STUD, STEERING LINK JOINT 45473 - SEAT, BALL STUD 45473 - SEAT, BALL STUD 45473 - SEAT, BALL STUD 45473 - SEAT, BALL STUD 45473 - SEAT, BALL STUD 45474 - SOCKET, BALL STUD SEAT 45475 - SEAT, STEERING LINK JOINT SPRING 45475 - SEAT, STEERING LINK JOINT SPRING 45475 - SEAT, STEERING LINK JOINT SPRING 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) 45476 - PLATE, TURNING STOPPER 45476 - PLATE, TURNING STOPPER 45477 - PLATE, STOPPER 45477 - PLATE, STOPPER 45611 - ARM, STEERING KNUCKLE, RH 45612 - ARM, STEERING KNUCKLE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
