TOYOTA HIACE RH20LB-JR / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

(8012- )RH20..LHD..BUS..GEN

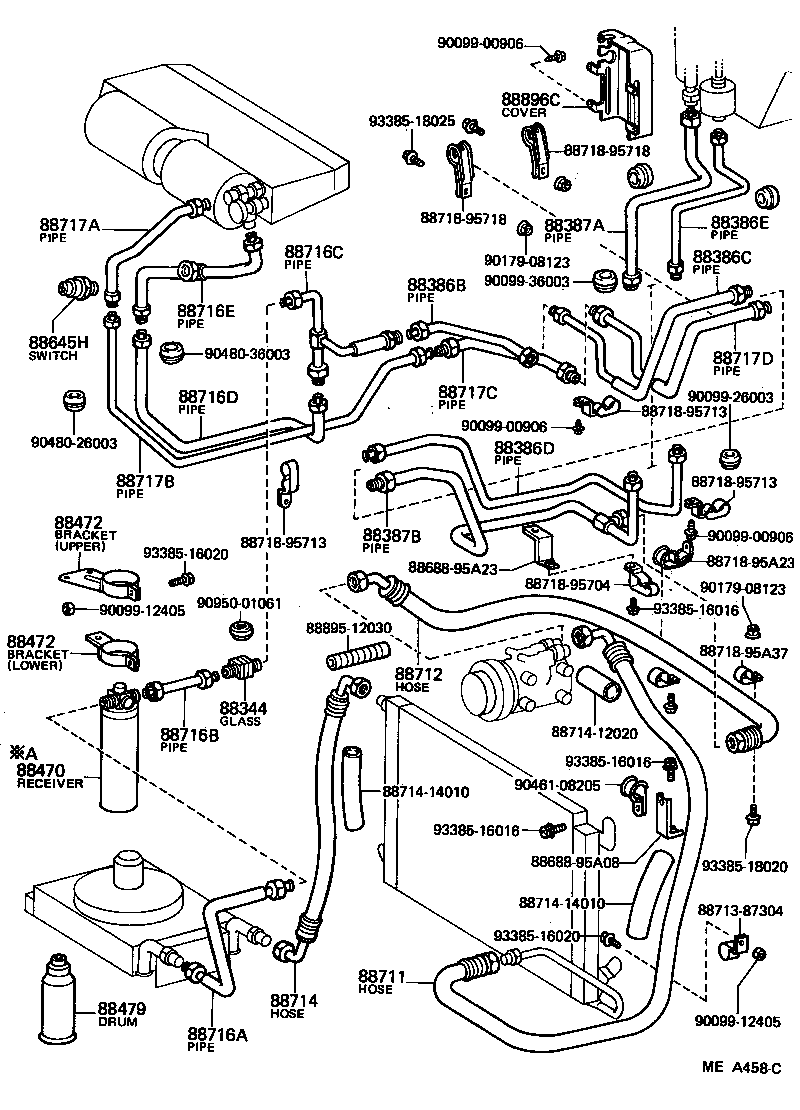

HIACE | HEATING AIR CONDITIONING COOLER PIPING 88344 - GLASS SUB-ASSY, SIGHT 88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B 88386C - PIPE, REAR COOLER REFRIGERANT LIQUID, C 88386D - PIPE, REAR COOLER REFRIGERANT LIQUID, D 88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT) 88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNIT) 88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B 88470 - RECEIVER & DRYER ASSY, COOLER 88472 - BRACKET, RECEIVER TANK, NO.1 88472 - BRACKET, RECEIVER TANK, NO.1 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 ** Std Part 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 ** Std Part ** Std Part ** Std Part 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716D - PIPE, COOLER REFRIGERANT LIQUID, D 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B 88717C - PIPE, COOLER REFRIGERANT SUCTION, C 88717D - PIPE, COOLER REFRIGERANT SUCTION, D ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88896C - COVER, COOLER REFRIGERANT PIPE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
