TOYOTA LAND CRUISER 70 LJ70R-KR / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INJECTION PUMP BODY

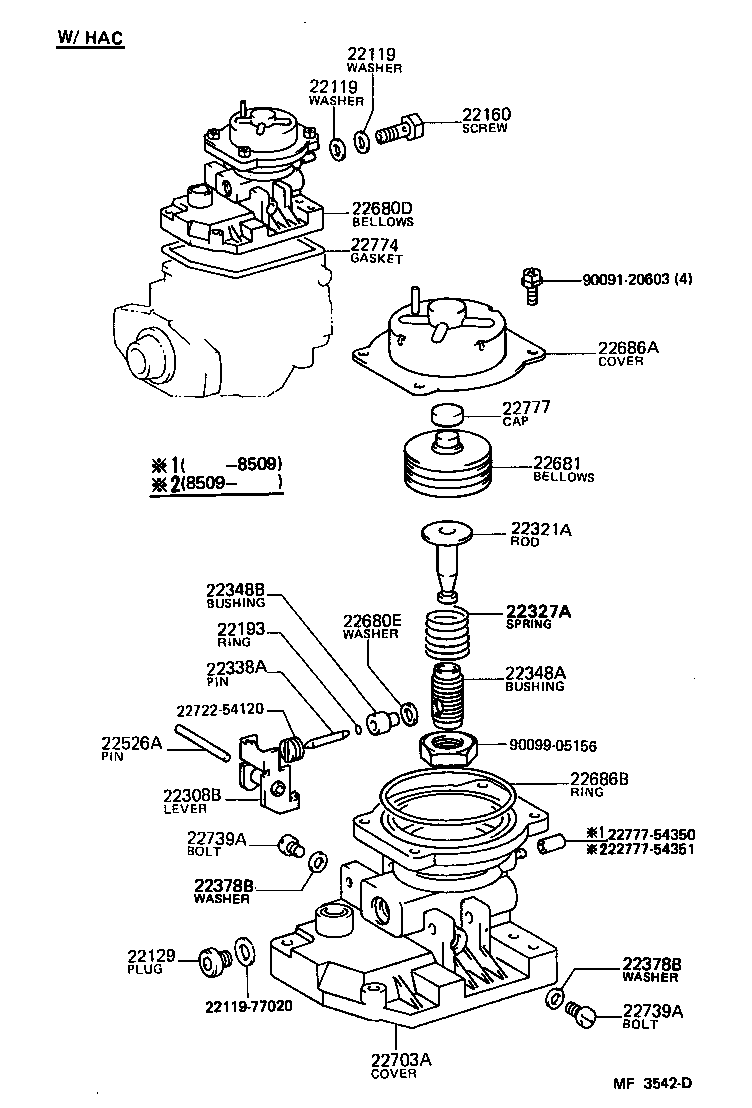

ILLUST NO. 1 OF 2(8411- )2L

LAND CRUISER 70 | INJECTION PUMP BODY 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE ** Std Part 22129 - PLUG, SCREW 22160 - SCREW SUB-ASSY, OVERFLOW 22193 - RING, O(FOR LEVER CONNECTING PIN) 22308B - LEVER SUB-ASSY, CONTROL 22321A - ROD, PUSH 22327A - SPRING(FOR BELLOWS) 22338A - PIN, LEVER CONNECTING 22348A - BUSHING, GUIDE 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) 22378B - WASHER, DRAIN SCREW 22378B - WASHER, DRAIN SCREW 22526A - PIN, LEVER SUPPORT 22680D - BELLOWS ASSY, PNEUMATIC 22680E - WASHER, COPPER PLATE 22681 - BELLOWS SUB-ASSY, PNEUMATIC 22686A - COVER, PNEUMATIC BELLOWS 22686B - RING, O(FOR BELLOWS COVER) 22703A - COVER SUB-ASSY, GOVERNOR ** Std Part 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22774 - GASKET, GOVERNOR COVER 22777 - CAP, RUBBER(FOR BELLOWS) ** Std Part ** Std Part ** Std Part ** Std Part
