TOYOTA LITEACE KM36RV-JR / POWERTRAIN-CHASSIS / CONTROL SHAFT CROSSSHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CONTROL SHAFT CROSSSHAFT

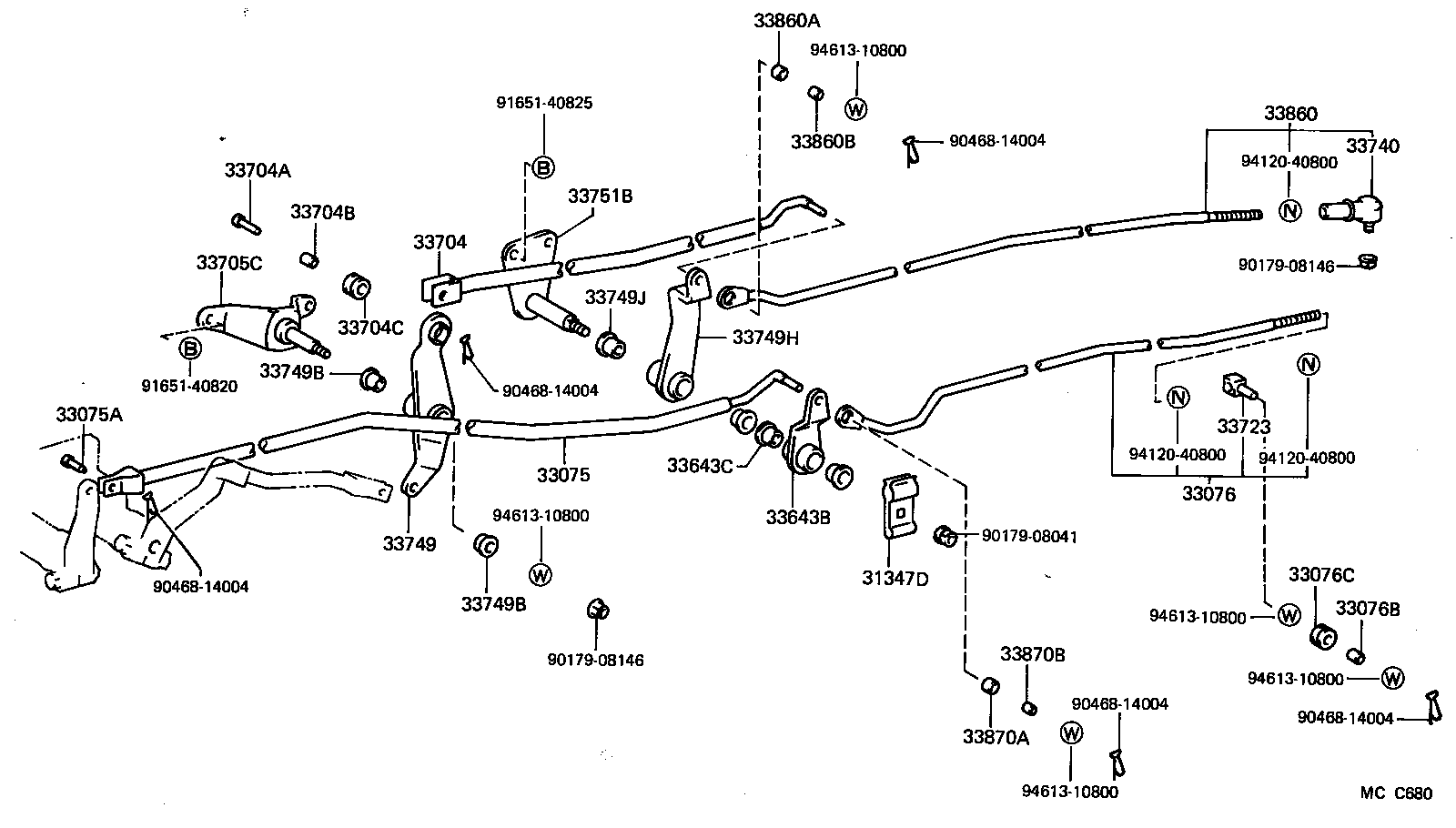

ILLUST NO. 2 OF 2(8509- )RHD..4H

LITEACE | CONTROL SHAFT CROSSSHAFT 31347D - CLAMP, CLUTCH CABLE(FOR CONTROL LEVER SUPPORT) 33075 - ROD SUB-ASSY, GEAR SELECTING, NO.2(FOR COLUMN SHIFT) 33075A - PIN, W/HOLE(FOR GEAR SELECTING ROD NO.2) 33076 - ROD SUB-ASSY, GEAR SELECTING, NO.3(FOR COLUMN SHIFT) 33076B - BUSHING(FOR GEAR SELECTING ROD) 33076C - GROMMET(FOR GEAR SELECTING ROD) 33643B - LEVER, GEAR SELECTING, NO.3 (FOR COLUMN SHIFT) 33643C - BUSH (FOR GEAR SELECTING LEVER NO.3) 33704 - ROD SUB-ASSY, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) 33704A - PIN, W/HOLE (FOR GEAR SHIFTING ROD NO.3) 33704B - BUSHING (FOR GEAR SHIFTING ROD) 33704C - GROMMET (FOR GEAR SHIFTING ROD) 33705C - SUPPORT SUB-ASSY, GEAR SHIFT LINK LEVER(FOR COLUMN SHIFT) 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) 33749 - LEVER, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) 33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER) 33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER) 33749H - LEVER, GEAR SHIFTING, NO.4 (FOR COLUMN SHIFT) 33749J - BUSH, GEAR SHIFTING, NO.4 33751B - SUPPORT, GEAR SHIFT LINK LEVER, NO.1 (FOR COLUMN SHIFT) 33860 - ROD ASSY, GEAR SHIFTING, NO.4 33860A - BUSH (FOR GEAR SHIFTING ROD) 33860B - SPACER (FOR GEAR SHIFTING ROD) 33870A - BUSH (FOR GEAR SELECTING ROD) 33870B - SPACER (FOR GEAR SELECTING ROD) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
