TOYOTA LITEACE KM36RV-JRBFE / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

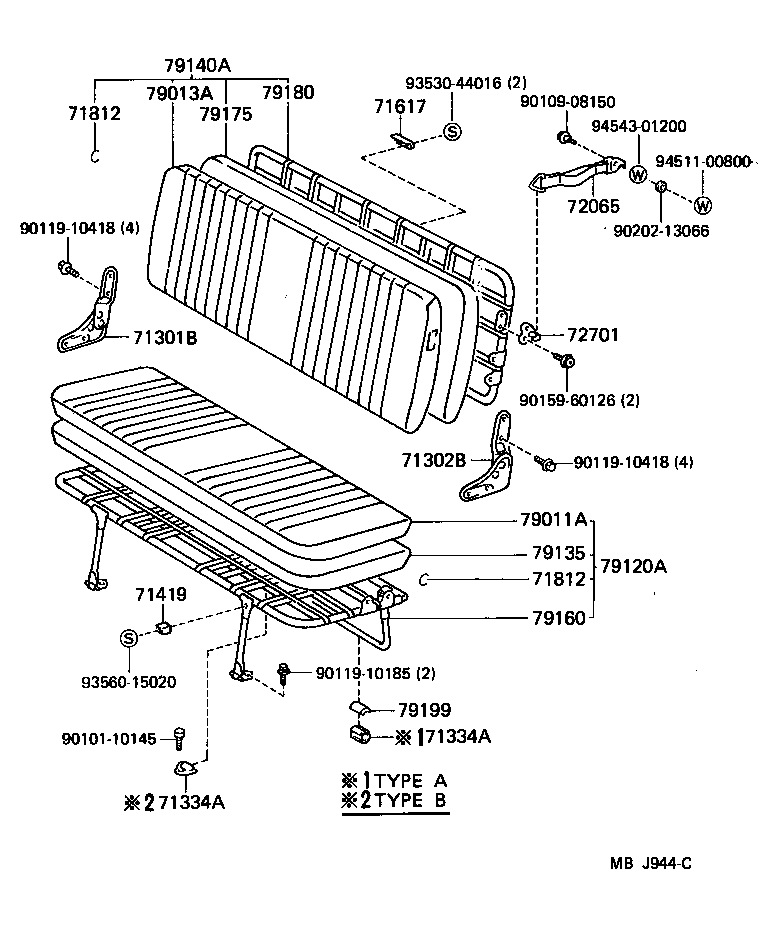

SEAT SEAT TRACK

ILLUST NO. 2 OF 2(8509- )CM3#,KM36..GEN

 LITEACE |  SEAT SEAT TRACK 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH 71334A - STOPPER, REAR SEAT LEG 71334A - STOPPER, REAR SEAT LEG 71419 - CUSHION (FOR REAR SEAT LEG) 71617 - PROTECTOR, REAR SEAT BACK 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH 72701 - BRACKET SUB-ASSY, REAR SEAT BACK STOPPER 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION 79013A - COVER SUB-ASSY, NO.1 SEAT BACK 79120A - CUSHION ASSY, NO.1 SEAT 79135 - PAD, NO.1 SEAT CUSHION 79140A - BACK ASSY, NO.1 SEAT 79160 - SPRING ASSY, NO.1 SEAT CUSHION 79175 - PAD, NO.1 SEAT BACK 79180 - SPRING ASSY, NO.1 SEAT BACK 79199 - HOLDER, NO.1 SEAT LEG STOPPER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
