TOYOTA DYNA150 LY61R-MDPQ / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

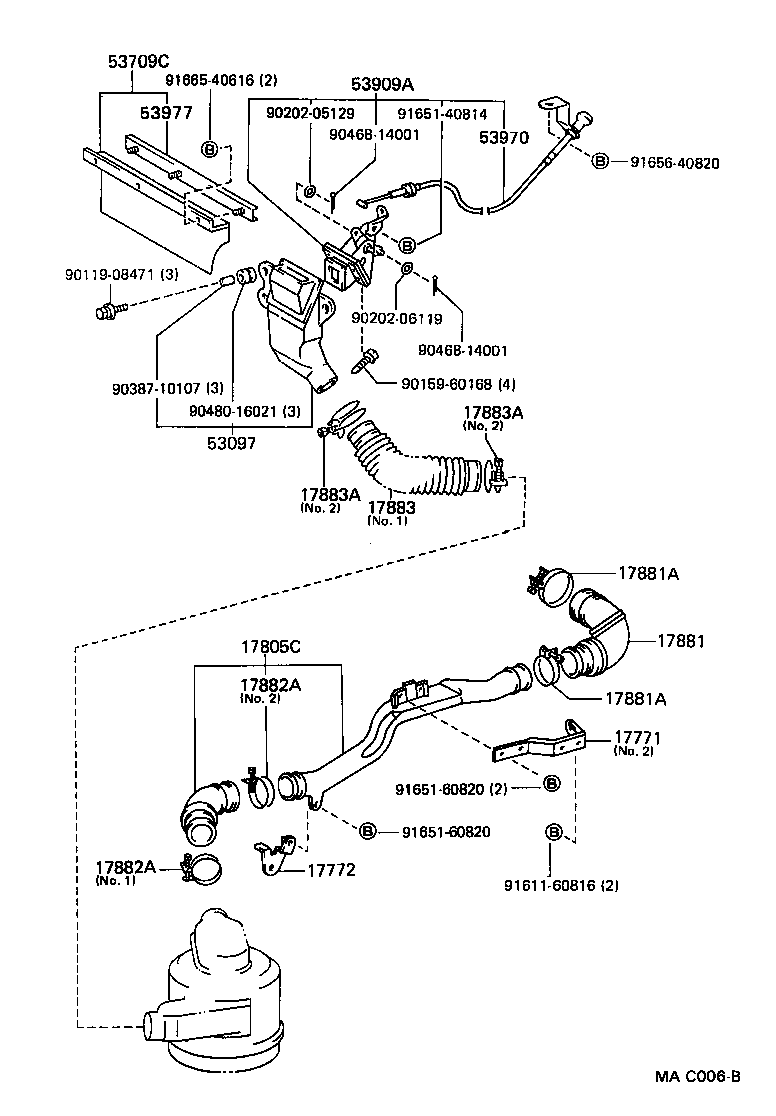

ILLUST NO. 1 OF 3(8808- )3L

 DYNA150 |  AIR CLEANER 17771 - BRACKET, AIR CLEANER INLET DUCT 17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17883 - HOSE, AIR CLEANER, NO.3 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 53097 - INLET SUB-ASSY 53709C - COVER SUB-ASSY, AIR CLEANER INLET 53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1 53970 - CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL 53977 - PLATE, AIR CLEANER INLET COVER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
