TOYOTA DYNA 200 BU65RD-MDT / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

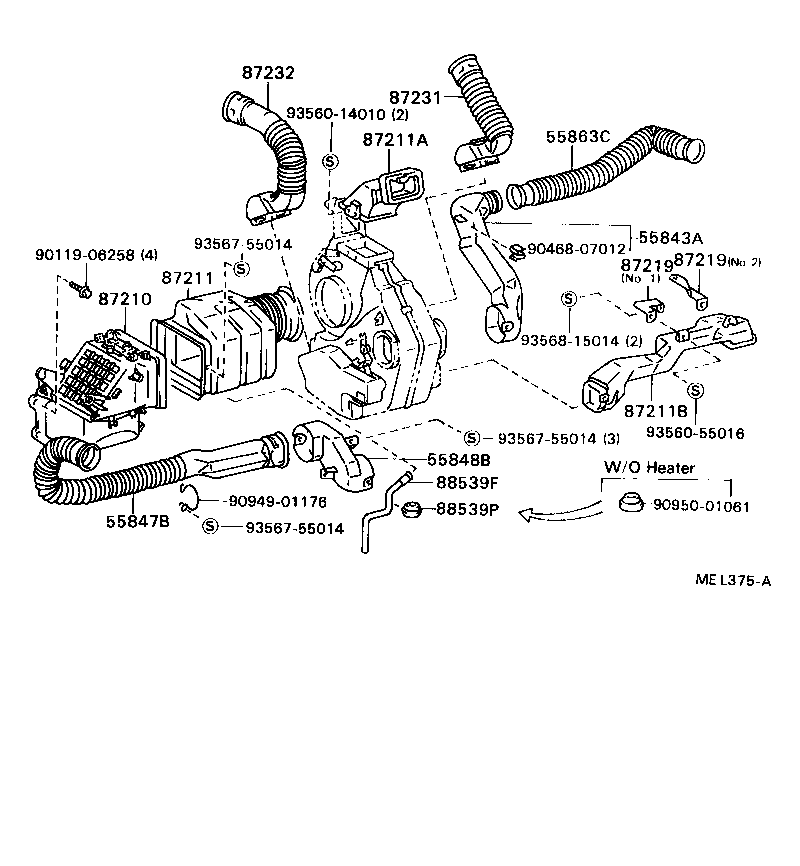

HEATING AIR CONDITIONING CONTROL AIR DUCT

ILLUST NO. 2 OF 2(8808- )BU60,61,65,66,83,84,87..RHD

DYNA 200 | HEATING AIR CONDITIONING CONTROL AIR DUCT 55843A - DUCT, HEATER TO REGISTER, NO.1 55847B - DUCT, HEATER TO REGISTER, NO.5 55848B - DUCT, HEATER TO REGISTER, NO.6 55863C - BOOT, SIDE VENTILATOR DUCT 87210 - DAMPER ASSY, AIR 87211 - DUCT, AIR, NO.1 87211A - DUCT, AIR, NO.2 87211B - DUCT, AIR, NO.3 87219 - BRACKET, FRONT AIR DUCT 87219 - BRACKET, FRONT AIR DUCT 87231 - HOSE, HEATER DEFROSTER, RH 87232 - HOSE, HEATER DEFROSTER, LH 88539F - HOSE, DRAIN 88539P - GROMMET(FOR DRAIN HOSE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
