TOYOTA LAND CRUISER 70 HZJ75RV-MRQ / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

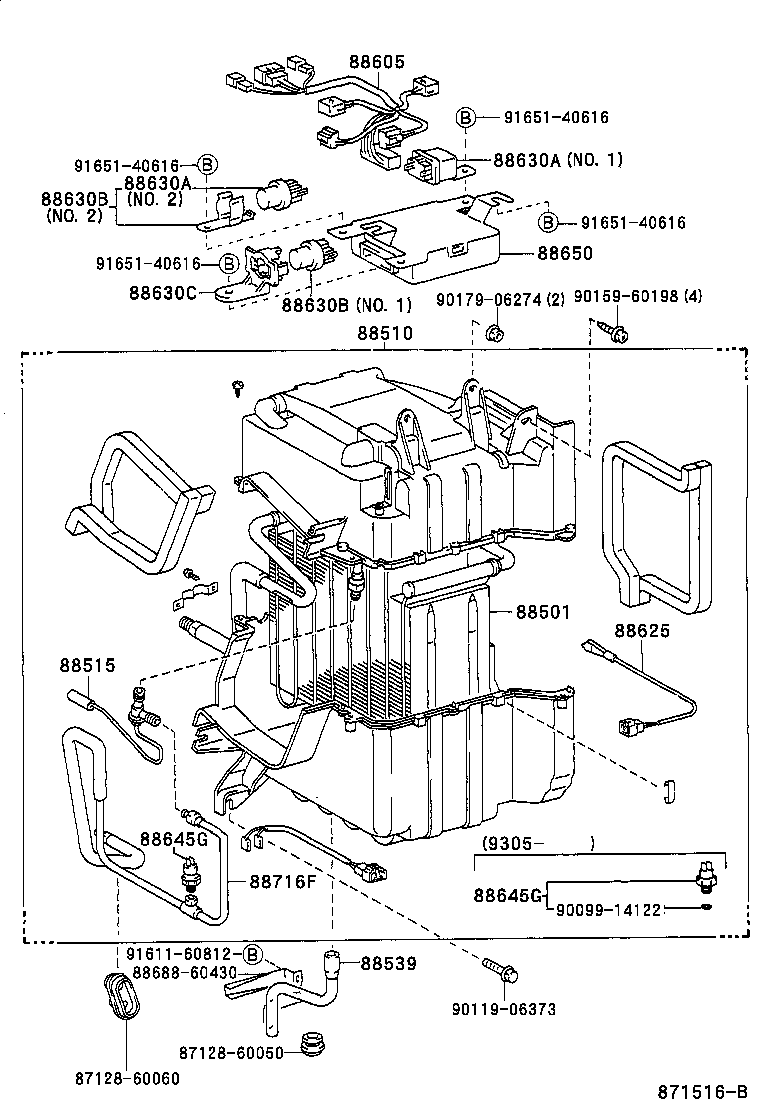

HEATING AIR CONDITIONING COOLER UNIT

FRONT(MAKER OPTION W(REAR COOLER)) ILLUST NO. 1 OF 3(9001-9201)FJ75,HZJ75..HT

LAND CRUISER 70 | HEATING AIR CONDITIONING COOLER UNIT ** Std Part ** Std Part 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88510 - UNIT ASSY, COOLER 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 88625 - THERMISTOR, COOLER, NO.1 88630A - RELAY ASSY, COOLER 88630A - RELAY ASSY, COOLER 88630B - RELAY ASSY, COOLER 88630B - RELAY ASSY, COOLER 88630C - BRACKET, COOLER RELAY 88645G - SWITCH, PRESSURE 88645G - SWITCH, PRESSURE 88650 - AMPLIFIER ASSY, COOLER STABILIZER ** Std Part 88716F - PIPE, COOLER REFRIGERANT LIQUID, F ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
