TOYOTA PASEO EL44R-DCMSKQ / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

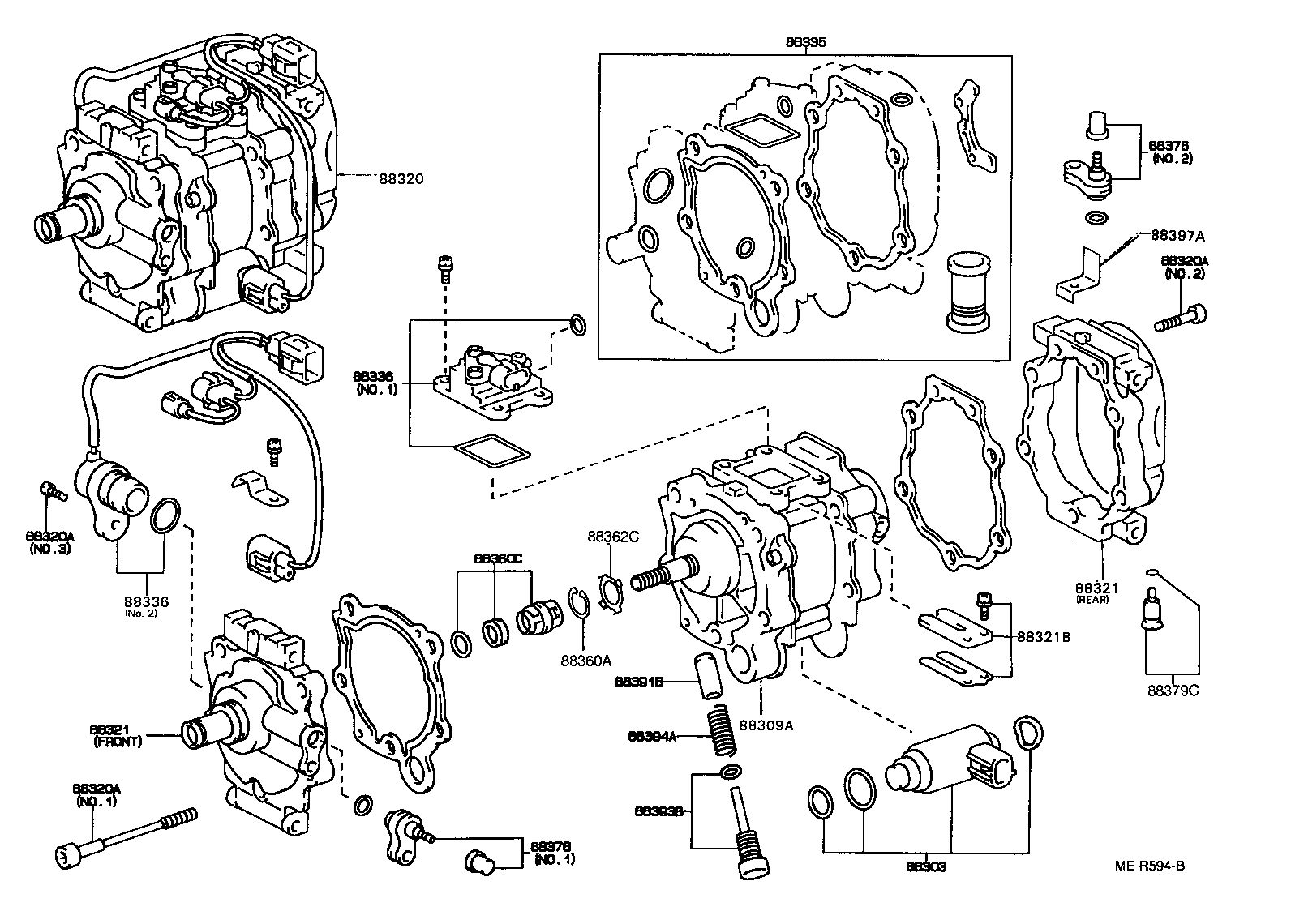

ILLUST NO. 2 OF 2(9104- )

 PASEO |  HEATING AIR CONDITIONING COMPRESSOR 88303 - REGULATOR KIT 88309A - PUMP SUB-ASSY, COMPRESSOR 88320 - COMPRESSOR ASSY, COOLER 88320A - BOLT, THROUGH 88320A - BOLT, THROUGH 88320A - BOLT, THROUGH 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321B - REED SUB-ASSY, VALVE 88335 - GASKET KIT, OVERHAUL 88336 - SENSOR, COMPRESSOR 88336 - SENSOR, COMPRESSOR 88360A - RING, COMPRESSOR SEAL PLATE SNAP 88360C - SEAL ASSY, SHAFT 88362C - PLATE, PULSE 88376 - CAP, BLIND 88376 - CAP, BLIND 88379C - VALVE, PRESSURE RELIEF 88391B - SPOOL, SLIDE 88393B - BOLT, SPOOL KIT 88394A - SPRING, SPOOL 88397A - CLIP, COMPRESSOR
