TOYOTA CROWN JZS133-AEPQF / ELECTRICAL / WINDSHIELD WASHER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

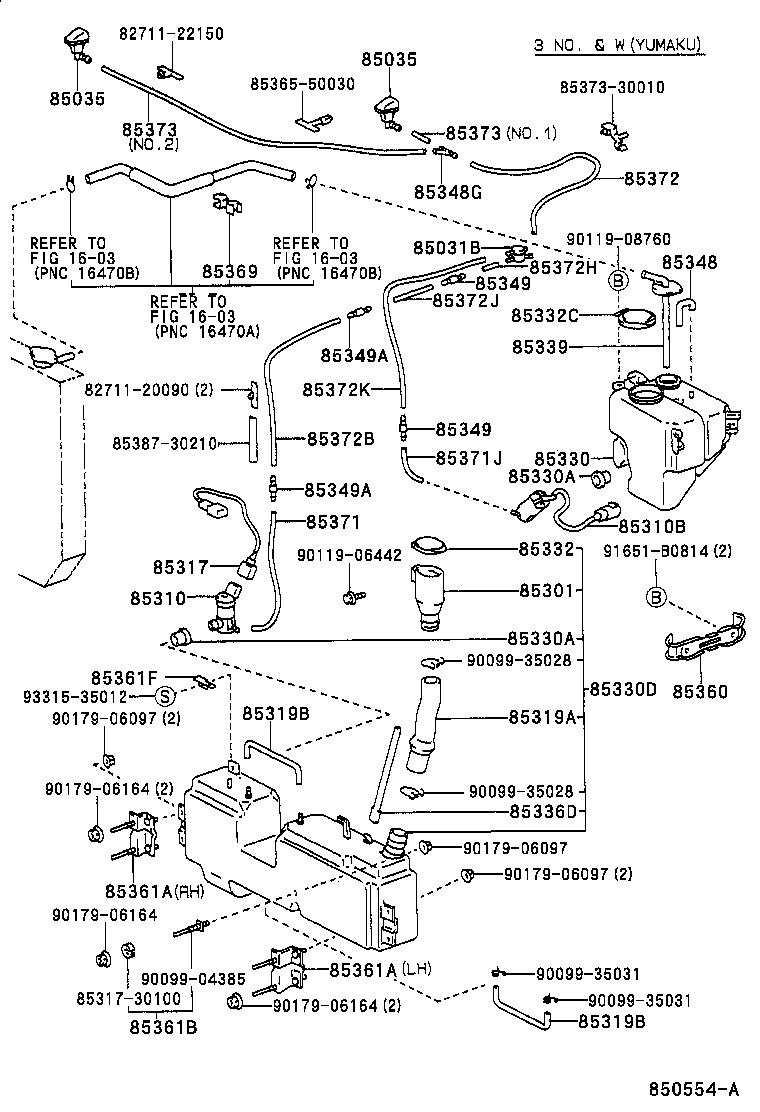

WINDSHIELD WASHER

COLD SPEC (9110-9308)EECC

 CROWN |  WINDSHIELD WASHER ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part 85031B - VALVE SUB-ASSY, WASHER 85035 - NOZZLE SUB-ASSY, WASHER 85035 - NOZZLE SUB-ASSY, WASHER 85301 - INLET SUB-ASSY, WASHER 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER 85310B - MOTOR & PUMP ASSY, WINDSHIELD WASHER 85317 - WIRING ASSY, WASHER  ** Std Part 85319A - HOSE, INLET 85319B - HOSE, WINDOW WASHER 85319B - HOSE, WINDOW WASHER 85330 - JAR ASSY, WINDSHIELD WASHER 85330A - BUSH, WINDSHIELD WASHER JAR 85330A - BUSH, WINDSHIELD WASHER JAR 85330D - JAR ASSY, WASHER 85332 - CAP, WINDSHIELD WASHER JAR 85332C - CAP, FRONT WASHER TANK 85336D - PACKING, WINDSHIELD WASHER JAR 85339 - CAP SUB-ASSY, RESERVE TANK 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 85360 - BRACKET ASSY, WINDSHIELD WASHER 85361A - BRACKET, WINDSHIELD WASHER, NO.1 85361A - BRACKET, WINDSHIELD WASHER, NO.1 85361B - BRACKET, WINDSHIELD WASHER, NO.2 85361F - BRACKET, WINDSHIELD WASHER, NO.3  ** Std Part 85369 - CLAMP 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) 85371J - TUBE, RUBBER 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
