TOYOTA CROWN JZS133-AEPQF / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

STEERING COLUMN SHAFT

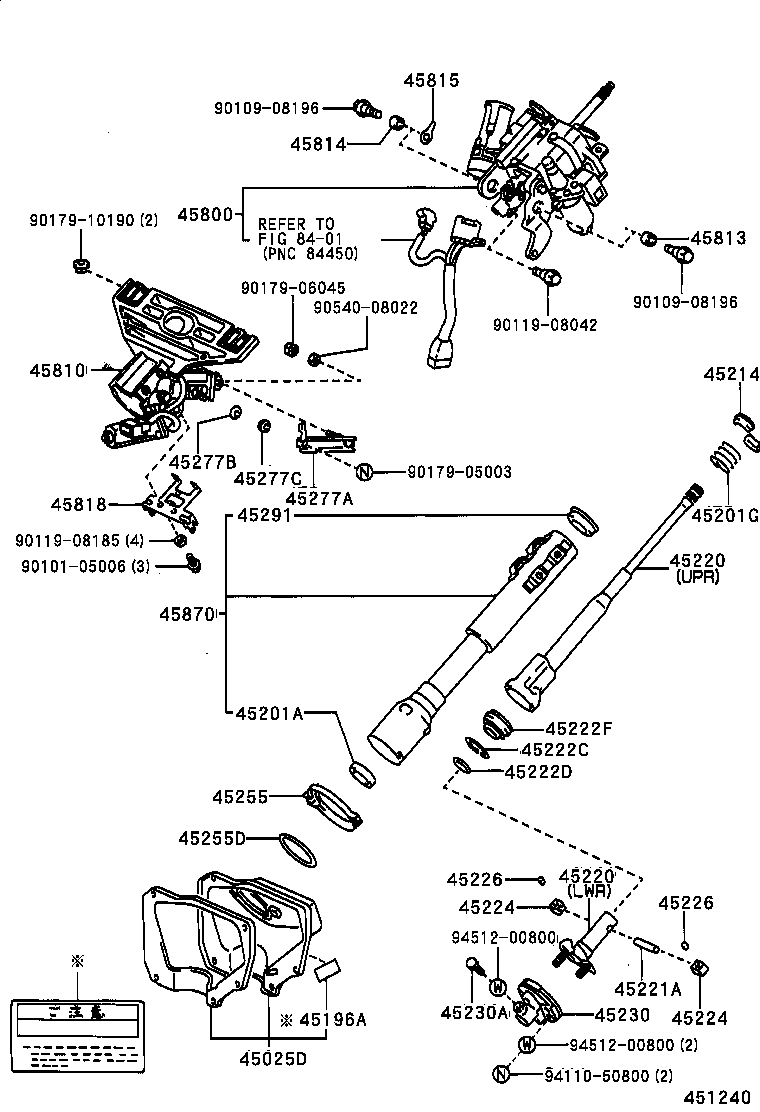

ILLUST NO. 1 OF 2(9110- )EECC

 CROWN |  STEERING COLUMN SHAFT 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 45196A - LABEL, STEERING SHAFT INSTAL CAUTION 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45214 - RETAINER, MAIN SHAFT SPRING 45220 - SHAFT ASSY, STEERING INTERMEDIATE 45220 - SHAFT ASSY, STEERING INTERMEDIATE 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) 45222C - RING, HOLE SNAP(FOR DUST COVER) 45222D - RING, O(FOR DUST COVER) 45222F - COVER, DUST 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) 45230 - COUPLING ASSY, FLEXIBLE 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) 45255 - PLATE, STEERING COLUMN HOLE COVER 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) 45277A - SUPPORT, TILT STEERING 45277B - CUSHION(FOR TILT STEERING SUPPORT) 45277C - SPACER(FOR TILT STEERING SUPPORT) 45291 - SEAL, MAIN SHAFT UPPER DUST 45800 - GEAR ASSY, TELESCOPIC STEERING, W/MOTOR 45810 - GEAR ASSY, TILT STEERING, W/MOTOR 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 45815 - SHIM, TILT STEERING SUPPORT 45818 - BRACKET, CONNECTOR 45870 - TUBE ASSY, STEERING COLUMN ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
