TOYOTA CROWN JZS133R-AEMQF / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

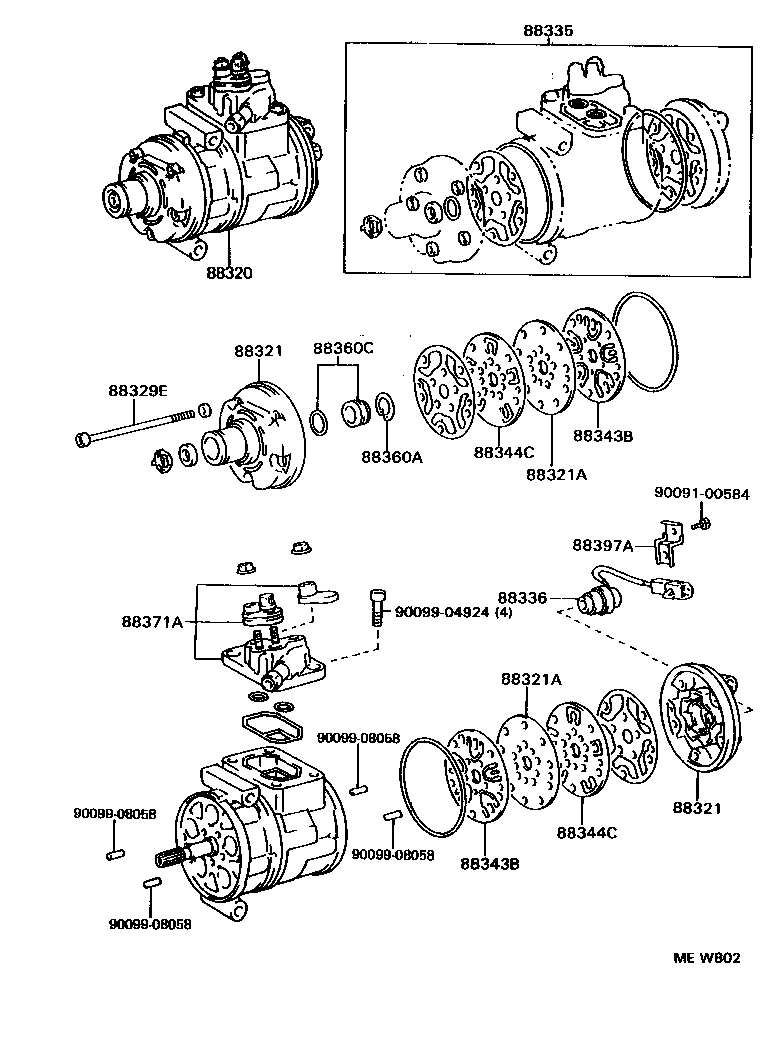

COMPONENT OF COMPRESSOR ILLUST NO. 2 OF 2(9110- )JZS133

CROWN | HEATING AIR CONDITIONING COMPRESSOR 88320 - COMPRESSOR ASSY, COOLER 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321A - PLATE SUB-ASSY, VALVE 88321A - PLATE SUB-ASSY, VALVE 88329E - BOLT, COMPRESSOR, NO.1 88335 - GASKET KIT, OVERHAUL 88336 - SENSOR, COMPRESSOR 88343B - REED, SUCTION VALVE 88343B - REED, SUCTION VALVE 88344C - REED, DISCHARGE VALVE 88344C - REED, DISCHARGE VALVE 88360A - RING, COMPRESSOR SEAL PLATE SNAP 88360C - SEAL ASSY, SHAFT 88371A - VALVE, SUCTION 88397A - CLIP, COMPRESSOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
