TOYOTA CROWN JZS133R-AEPQF / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

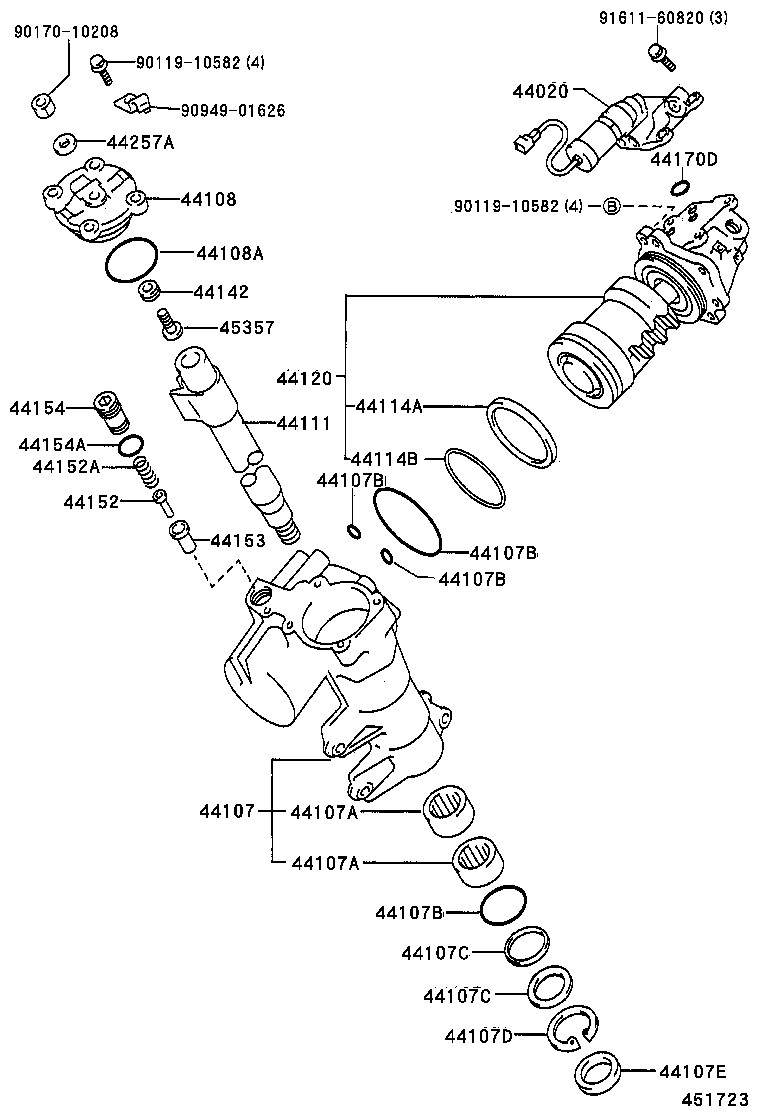

FRONT STEERING GEAR LINK

HONG KONG,SINGAPORE,THAILAND SPEC ILLUST NO. 3 OF 3(9308-9512)JZS133..RHD..Q

CROWN | FRONT STEERING GEAR LINK 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107C - RING(FOR POWER STEERING GEAR HOUSING) 44107C - RING(FOR POWER STEERING GEAR HOUSING) 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) 44108 - COVER SUB-ASSY, SIDE 44108A - RING, O(FOR SIDE COVER) 44111 - SHAFT, CROSS 44114A - RING(FOR POWER PISTON NUT) 44114B - RING, O(FOR POWER PISTON NUT) 44120 - VALVE ASSY, W/BALL NUT 44142 - NUT, LOCK 44152 - PLUNGER, POWER PISTON 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) 44153 - GUIDE, POWER PISTON PLUNGER 44154 - NUT, POWER PISTON PLUNGER GUIDE 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) 44170D - RING, O(FOR POWER STEERING SOLENOID VALVE) 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) 45357 - SCREW, SECTOR SHAFT ADJUSTING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
