TOYOTA CROWN LS130R-AEJBS / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

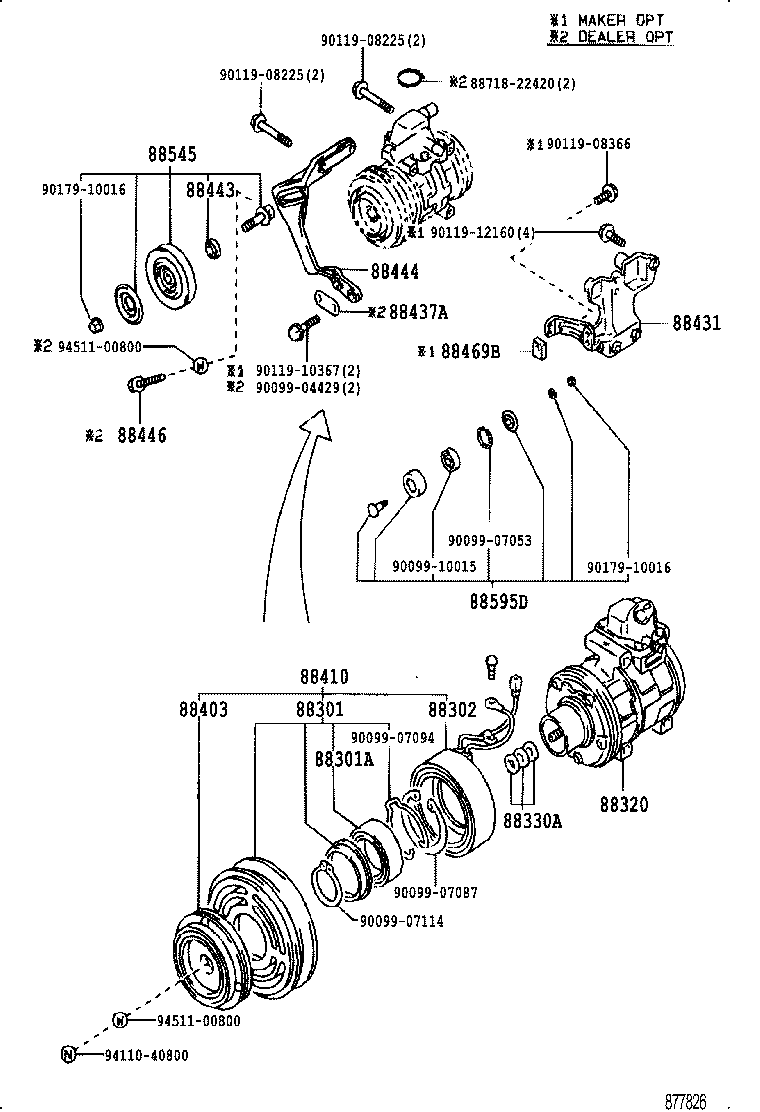

ILLUST NO. 1 OF 2(9110-9512)LS130..RHD

 CROWN |  HEATING AIR CONDITIONING COMPRESSOR 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH 88301A - BEARING (FOR MAGNET CLUTCH) 88302 - STATOR SUB-ASSY, MAGNET CLUTCH 88320 - COMPRESSOR ASSY, COOLER 88330A - WASHER (FOR MAGNET CLUTCH) 88403 - HUB SUB-ASSY, MAGNET CLUTCH 88410 - CLUTCH ASSY, MAGNET 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 88437A - ATTACHMENT, COMPRESSOR 88443 - COLLAR, IDLE PULLEY 88444 - BRACKET, IDLE PULLEY 88446 - BOLT, IDLE PULLEY 88469B - COLLAR 88545 - PULLEY ASSY, IDLE 88595D - PULLEY ASSY, IDLE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
