TOYOTA CROWN LS130R-AEJBS / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

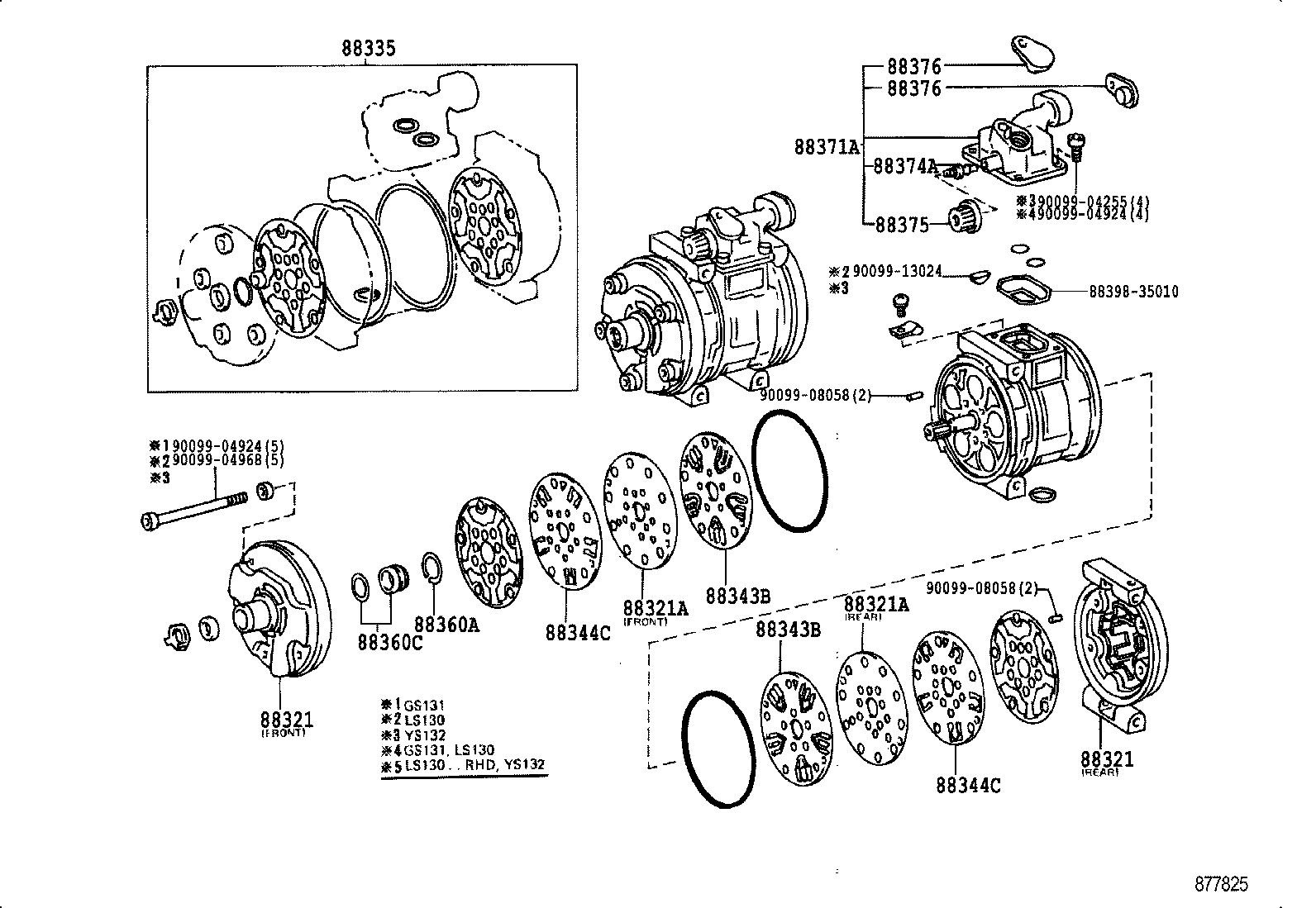

COMPONENT OF COMPRESSOR ILLUST NO. 2 OF 2(9110- )GS131,LS130,YS132

CROWN | HEATING AIR CONDITIONING COMPRESSOR 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321A - PLATE SUB-ASSY, VALVE 88321A - PLATE SUB-ASSY, VALVE 88335 - GASKET KIT, OVERHAUL 88343B - REED, SUCTION VALVE 88343B - REED, SUCTION VALVE 88344C - REED, DISCHARGE VALVE 88344C - REED, DISCHARGE VALVE 88360A - RING, COMPRESSOR SEAL PLATE SNAP 88360C - SEAL ASSY, SHAFT 88371A - VALVE, SUCTION 88374A - VALVE, SERVICE 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE 88376 - CAP, BLIND 88376 - CAP, BLIND ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
