TOYOTA CROWN YS132L-AEKBS / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

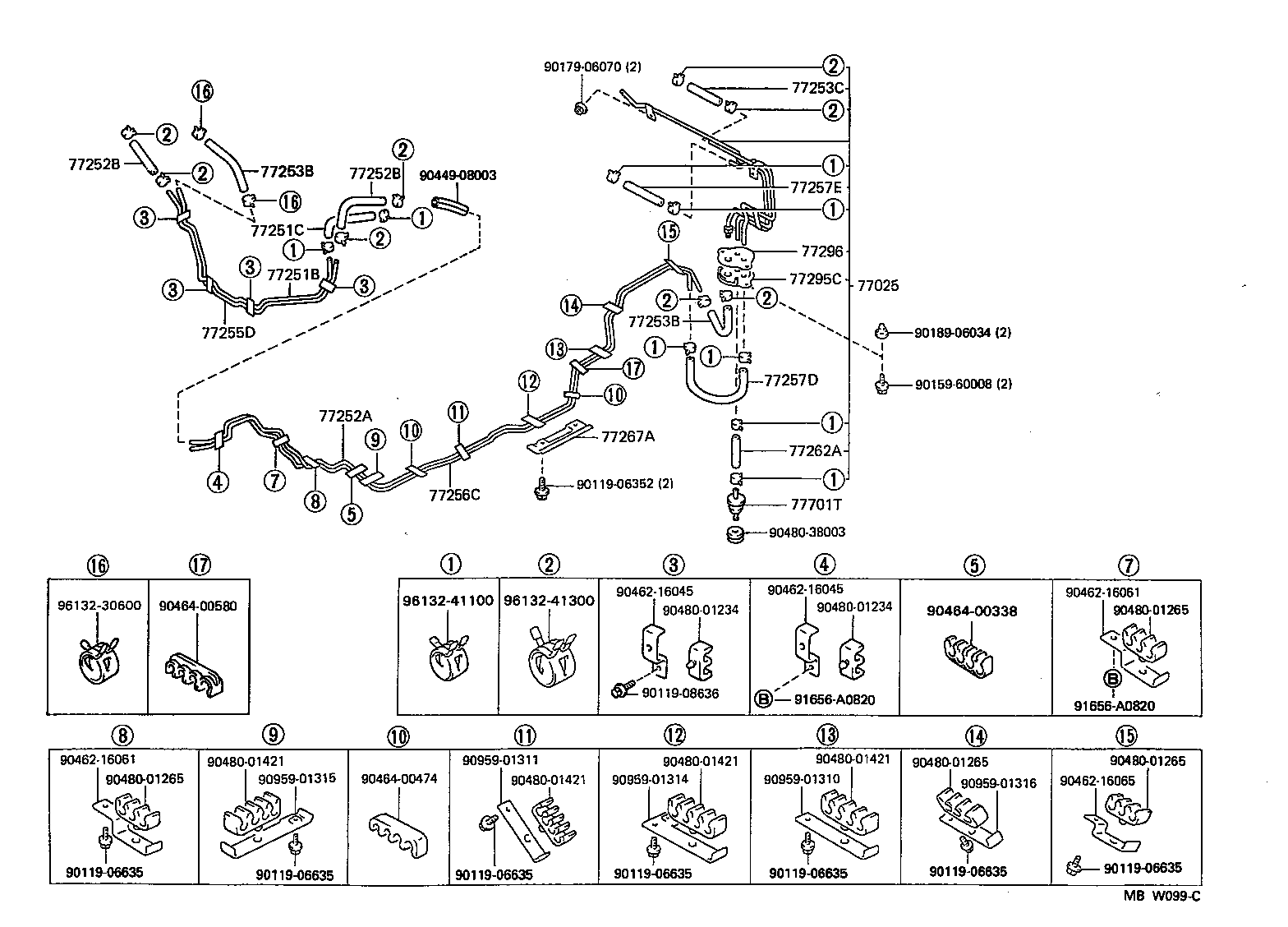

FUEL TANK TUBE

ILLUST NO. 2 OF 2(9110- )YS132

 CROWN |  FUEL TANK TUBE 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR 77251B - TUBE, FUEL MAIN 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77252A - TUBE, FUEL MAIN, NO.2 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) 77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE) 77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE) 77253C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE) 77255D - TUBE, FUEL RETURN 77256C - TUBE, FUEL RETURN, NO.2 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) 77257E - HOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE) 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) 77267A - PROTECTOR, FUEL TUBE, NO.2 77295C - GROMMET, FUEL TUBE 77296 - PLATE, FUEL TUBE GROMMET SUPPORT 77701T - VALVE, CHECK (FOR MAIN FUEL TANK)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
