TOYOTA HIACE VAN COMUTER LH113R-RRMRS / POWERTRAIN-CHASSIS / GEAR SHIFT FORK LEVER SHAFT MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

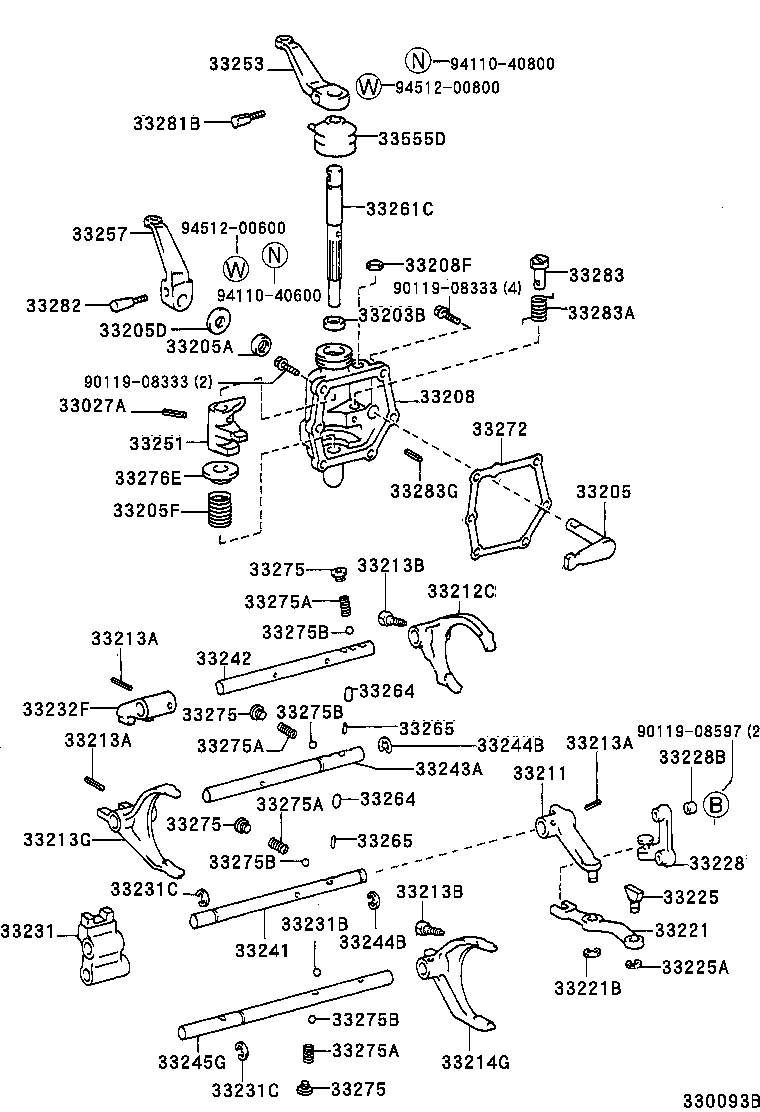

GEAR SHIFT FORK LEVER SHAFT MTM

G55,MALAYSIA SPEC ILLUST NO. 1 OF 2(9209-9308)LH113,RZH112..4D..06S

HIACE VAN COMUTER | GEAR SHIFT FORK LEVER SHAFT MTM 33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET) 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) 33205 - SHAFT SUB-ASSY, SELECT LEVER 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) 33205D - WASHER(FOR OUTER LEVER OIL SETTING) 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) 33211 - FORK, REVERSE SHIFT 33212C - FORK, GEAR SHIFT, NO.1 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213B - BOLT(FOR SHIFT FORK SET) 33213B - BOLT(FOR SHIFT FORK SET) 33213G - FORK, GEAR SHIFT, NO.2 33214G - FORK, GEAR SHIFT, NO.3 33221 - ARM, REVERSE SHIFT 33221B - RING, E(FOR REVERSE SHIFT ARM) 33225 - SHOE, SHIFT ARM 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) 33228 - BRACKET, REVERSE SHIFT ARM 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) 33231 - HEAD, REVERSE SHIFT 33231B - BALL, REVERSE SHIFT RESTRICT 33231C - RING(FOR REVERSE SHIFT HEAD) 33231C - RING(FOR REVERSE SHIFT HEAD) 33232F - HEAD, GEAR SHIFT, NO.1 33241 - SHAFT, REVERSE SHIFT FORK 33242 - SHAFT, GEAR SHIFT FORK, NO.1 33243A - SHAFT, GEAR SHIFT FORK, NO.2 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) 33245G - SHAFT, GEAR SHIFT FORK, NO.4 33251 - LEVER, SHIFT & SELECT 33253 - LEVER, SHIFT OUTER, NO.1 33257 - LEVER, SELECT OUTER 33261C - SHAFT, SHIFT & SELECT LEVER 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33265 - PIN, SHIFT INTER LOCK, NO.2 33265 - PIN, SHIFT INTER LOCK, NO.2 33272 - GASKET, SHIFT LEVER SHAFT HOUSING 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) 33275B - BALL, SHAFT DETENT 33275B - BALL, SHAFT DETENT 33275B - BALL, SHAFT DETENT 33275B - BALL, SHAFT DETENT 33276E - SEAT, SELECT SPRING, NO.1 33281B - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) 33282 - PIN, LEVER LOCK, NO.2 33283 - PIN, REVERSE RESTRICT, NO.1 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) 33555D - BOOT, SHIFT LEVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
