TOYOTA HILUX 4RUNNER 4WD VZN130R-GKPSEQ / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

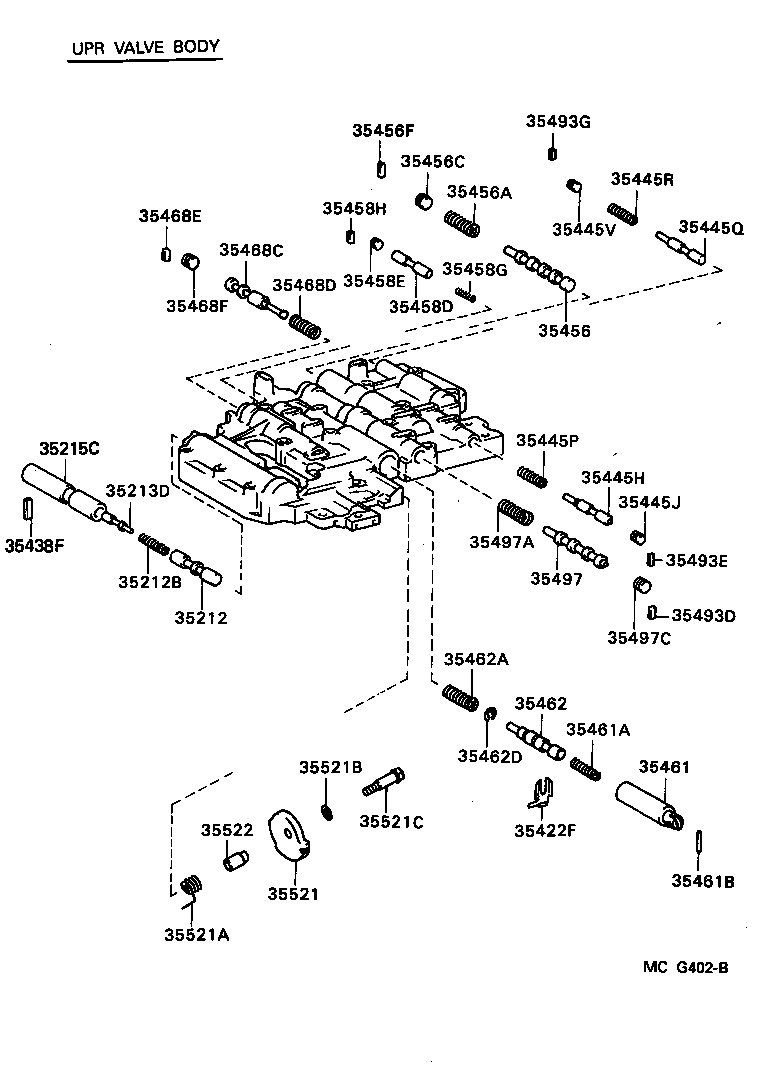

VALVE BODY OIL STRAINER ATM

ILLUST NO. 2 OF 4(8908-9511)4FC

 HILUX 4RUNNER 4WD |  VALVE BODY OIL STRAINER ATM 35212 - VALVE, LOCK UP RELAY 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) 35213D - PLUNGER, LOCK UP RELAY VALVE 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 35422F - STOPPER, VALVE VIBRATING 35438F - SEAT, DETENT SPRING 35445H - VALVE, 2ND COAST MODULATOR 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) 35445Q - VALVE, LOW COAST MODULATOR 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) 35456 - VALVE, 2-3 SHIFT 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35456C - PLUG (FOR 2-3 SHIFT VALVE) 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) 35458D - VALVE, CUT BACK 35458E - PLUG (FOR CUT BACK VALVE) 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) 35461 - PLUG, DOWN SHIFT 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) 35461B - PIN, STRAIGHT (FOR DOWN SHIFT PLUG) 35462 - VALVE, THROTTLE 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) 35462D - RING, E (FOR THROTTLE VALVE) 35468C - VALVE, SECONDARY REGULATOR 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) 35493D - SEAT, 3-4 SHIFT VALVE PLUG 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE) 35521 - CAM, THROTTLE VALVE 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) 35521B - WASHER (FOR THROTTLE VALVE CAM SET) 35521C - BOLT (FOR THROTTLE VALVE CAM SET) 35522 - PIN, THROTTLE VALVE CAM
