TOYOTA LITEACE VAN WAGON YR21LG-MDS / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

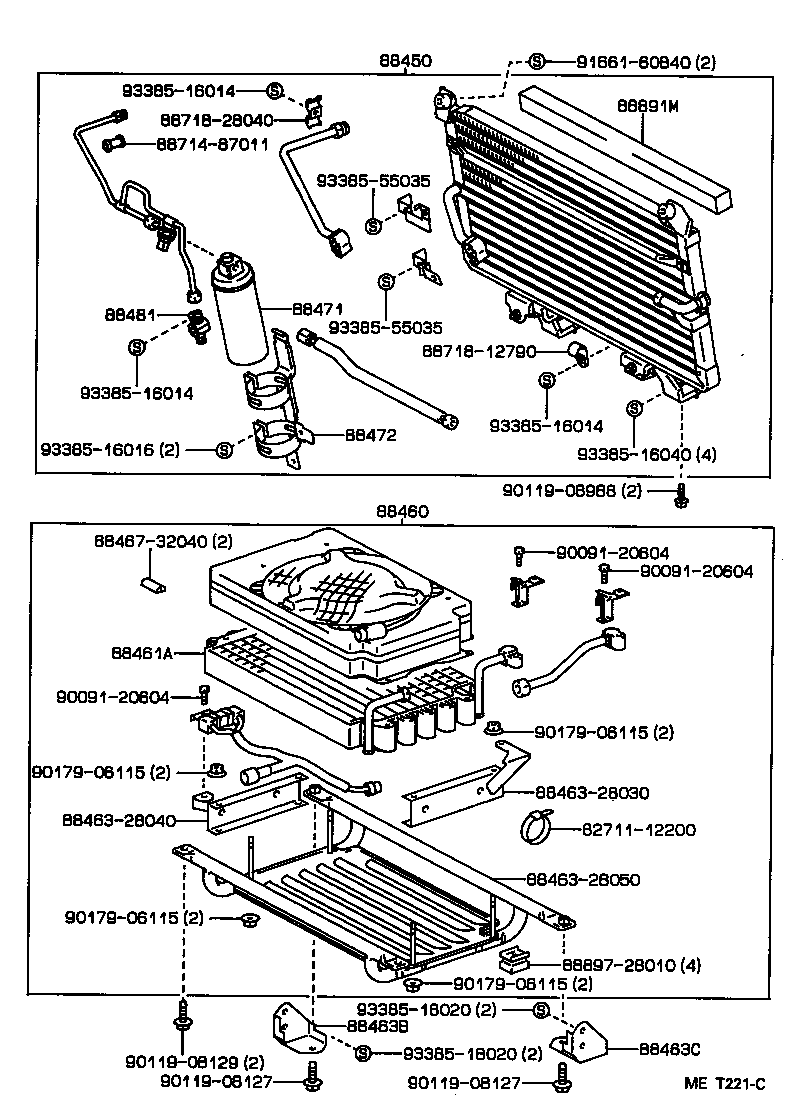

CONDENSER---DUAL(MAKER OPTION) ILLUST NO. 1 OF 4(9201-9309)YR21

LITEACE VAN WAGON | HEATING AIR CONDITIONING COOLER PIPING ** Std Part 88450 - CONDENSER ASSY, W/RECEIVER 88460 - CONDENSER ASSY, COOLER 88461A - CORE, COOLER CONDENSER ** Std Part ** Std Part ** Std Part 88463B - BRACKET, COOLER CONDENSER, NO.3 88463C - BRACKET, COOLER CONDENSER, NO.4 ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 88481 - GLASS, SIGHT ** Std Part ** Std Part ** Std Part 88891M - PACKING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
