TOYOTA CELICA ST205R-BLMVZQ / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

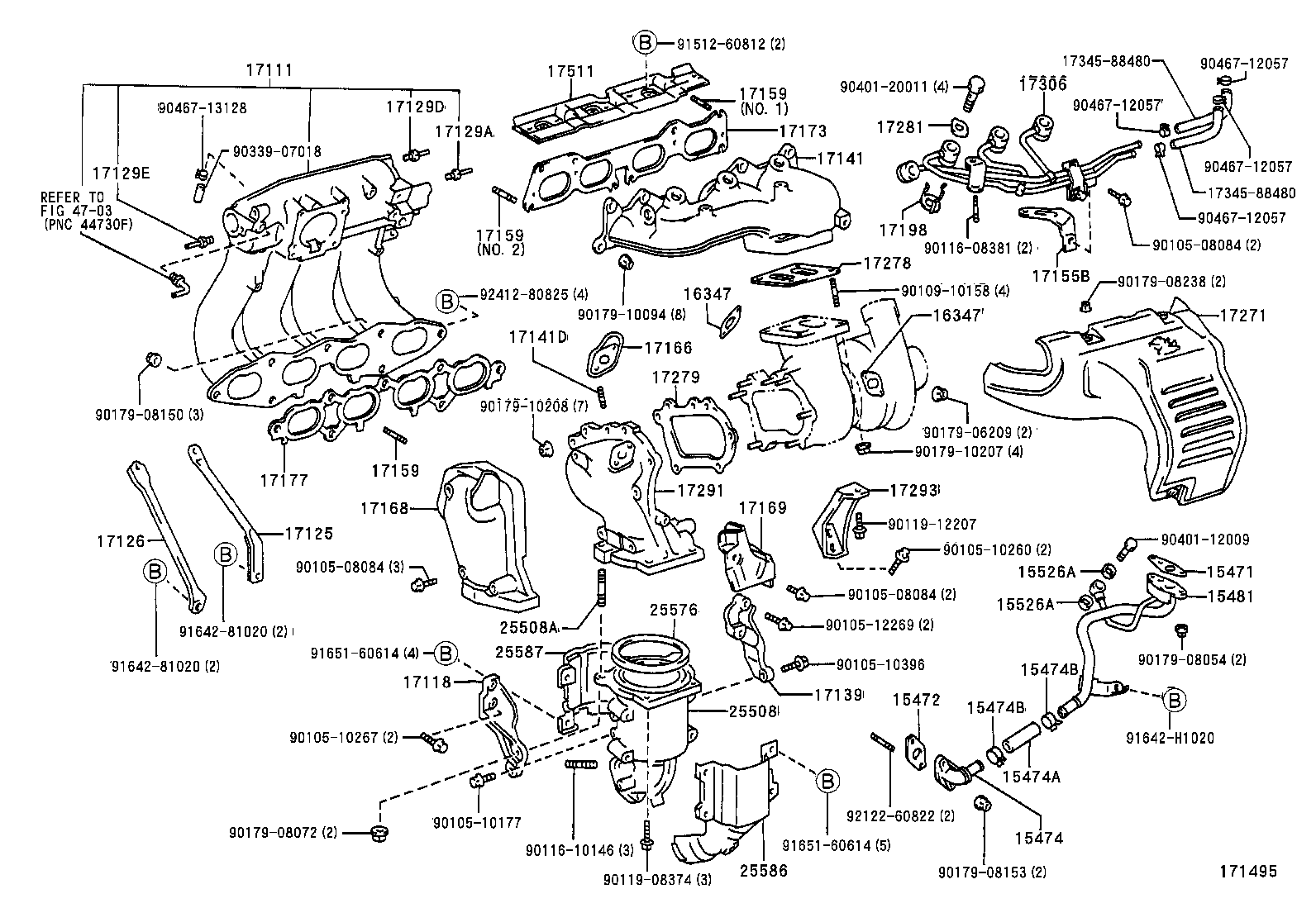

GROUP A SPEC ILLUST NO. 1 OF 2(9402-9404)3SGTE

CELICA | MANIFOLD 15471 - GASKET, TURBO OIL INLET 15472 - GASKET, TURBO OIL OUTLET, NO.1 15474 - PIPE, TURBO OIL OUTLET 15474A - HOSE, TURBO OIL OUTLET 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15481 - PIPE, TURBO OIL, NO.1 15526A - GASKET, JOINT(FOR TURBO OIL PIPE) 15526A - GASKET, JOINT(FOR TURBO OIL PIPE) 16347 - GASKET, WATER BY-PASS 16347 - GASKET, WATER BY-PASS 17111 - MANIFOLD, INTAKE 17118 - STAY, MANIFOLD 17125 - STAY, SURGE TANK, NO.1 17126 - STAY, SURGE TANK, NO.2 17129A - UNION, NO.1 17129D - UNION, NO.2 17129E - UNION, NO.3 17139 - STAY, MANIFOLD, NO.2 17141 - MANIFOLD, EXHAUST 17141D - BOLT, STUD(FOR OXYGEN SENSOR) 17155B - INSULATOR, EXHAUST MANIFOLD HEAT, NO.5 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17166 - INSULATOR, EXHAUST MANIFOLD HEAT,NO.4 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17198 - GASKET, EXHAUST MANIFOLD, NO.2 17271 - INSULATOR, TURBO, NO.1 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17281 - GASKET, EXHAUST GAS CONTROL VALVE 17291 - ELBOW, TURBINE OUTLET 17293 - STAY, TURBOCHARGER 17306 - MANIFOLD SUB-ASSY, AIRINJECTION ** Std Part ** Std Part 17511 - INSULATOR, EXHAUST PIPE, UPPER NO.1 25508 - CONVERTER SUB-ASSY, MANIFOLD 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) 25576 - GASKET, MANIFOLD CONVERTER 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
