TOYOTA LAND CRUISER 70 FZJ75LV-MRUV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

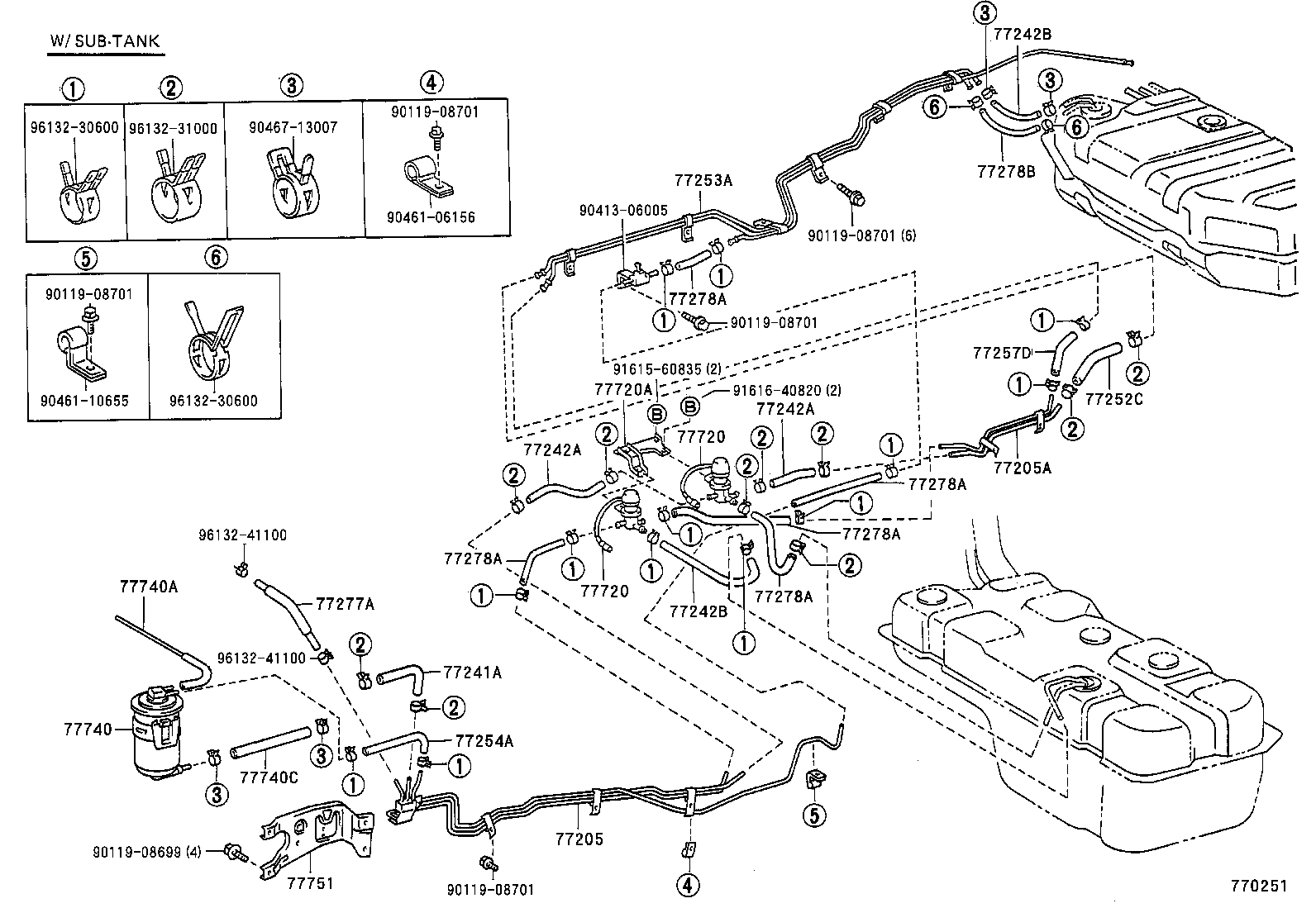

FUEL TUBE ILLUST NO. 2 OF 3(9201-9908)FZJ75..GCC

LAND CRUISER 70 | FUEL TANK TUBE 77205 - TUBE SUB-ASSY, FUEL MAIN 77205A - TUBE SUB-ASSY, FUEL MAIN 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) 77253A - TUBE, FUEL MAIN, NO.3 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) 77720 - VALVE SUB-ASSY, SAFETY 77720 - VALVE SUB-ASSY, SAFETY 77720A - BRACKET, SAFETY VALVE 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
