TOYOTA LAND CRUISER 70 KZJ77RV-MNX / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

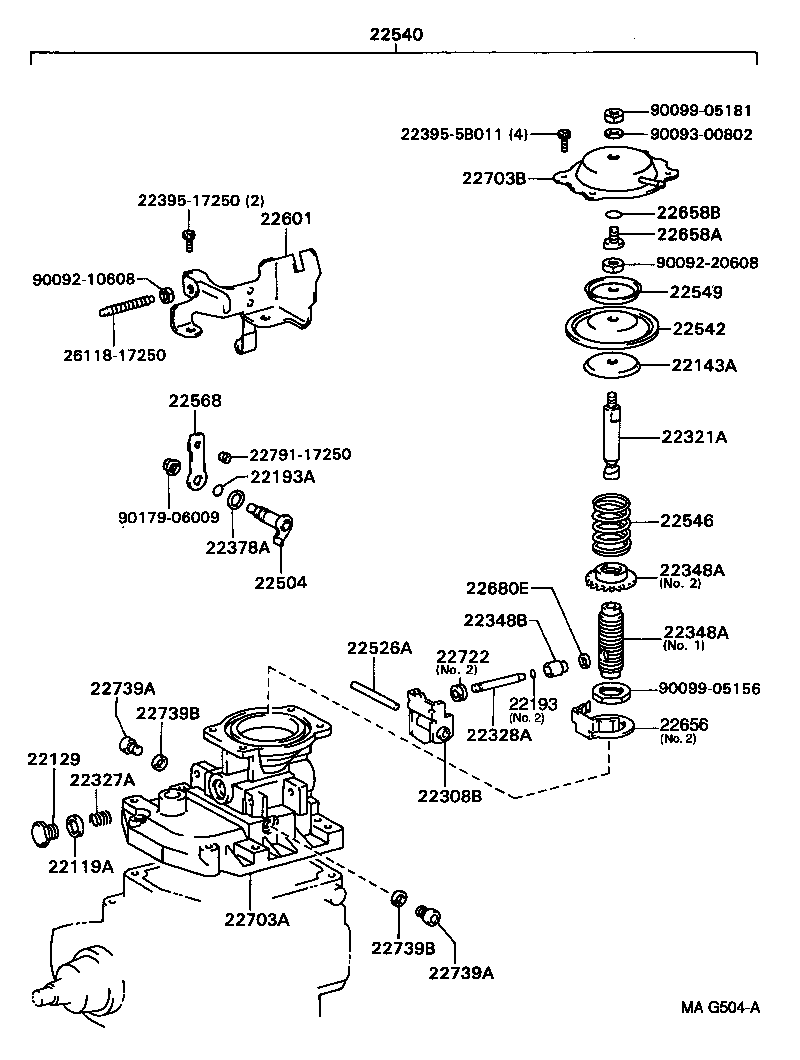

INJECTION PUMP BODY

ILLUST NO. 2 OF 2(9305-9604)1KZT

LAND CRUISER 70 | INJECTION PUMP BODY 22119A - WASHER, AIR BLEEDER NIPPLE, NO.2 22129 - PLUG, SCREW 22143A - SEAT, SPRING UPPER, NO.2 22193 - RING, O(FOR LEVER CONNECTING PIN) 22193A - RING, O(FOR ADJUSTING LEVER SHAFT) 22308B - LEVER SUB-ASSY, CONTROL 22321A - ROD, PUSH 22327A - SPRING(FOR BELLOWS) 22328A - PIN, LEVER CONNECTING 22348A - BUSHING, GUIDE 22348A - BUSHING, GUIDE 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) 22378A - WASHER, GOVERNOR THRUST ** Std Part ** Std Part 22504 - SHAFT SUB-ASSY, ADJUSTING LEVER 22526A - PIN, LEVER SUPPORT 22540 - COMPENSATOR SUB-ASSY, BOOST 22542 - DIAPHRAGM(FOR BOOST COMPENSATOR) 22546 - SPRING, BOOST COMPENSATOR 22549 - WASHER, THRUST(FOR BOOST COMPENSATOR DIAPHRAGM) 22568 - LEVER, THROTTLE 22601 - BRACKET SUB-ASSY, IDLE UP 22656 - CLIP, TIMER 22658A - STOPPER, TIMER SLIDE 22658B - RING, O(FOR TIMER SLIDE STOPPER) 22680E - WASHER, COPPER PLATE 22703A - COVER SUB-ASSY, GOVERNOR 22703B - COVER, GOVERNOR 22722 - NUT, GOVERNOR SHAFT ROCK 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
