TOYOTA LAND CRUISER 70 RJ77LV-MN / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

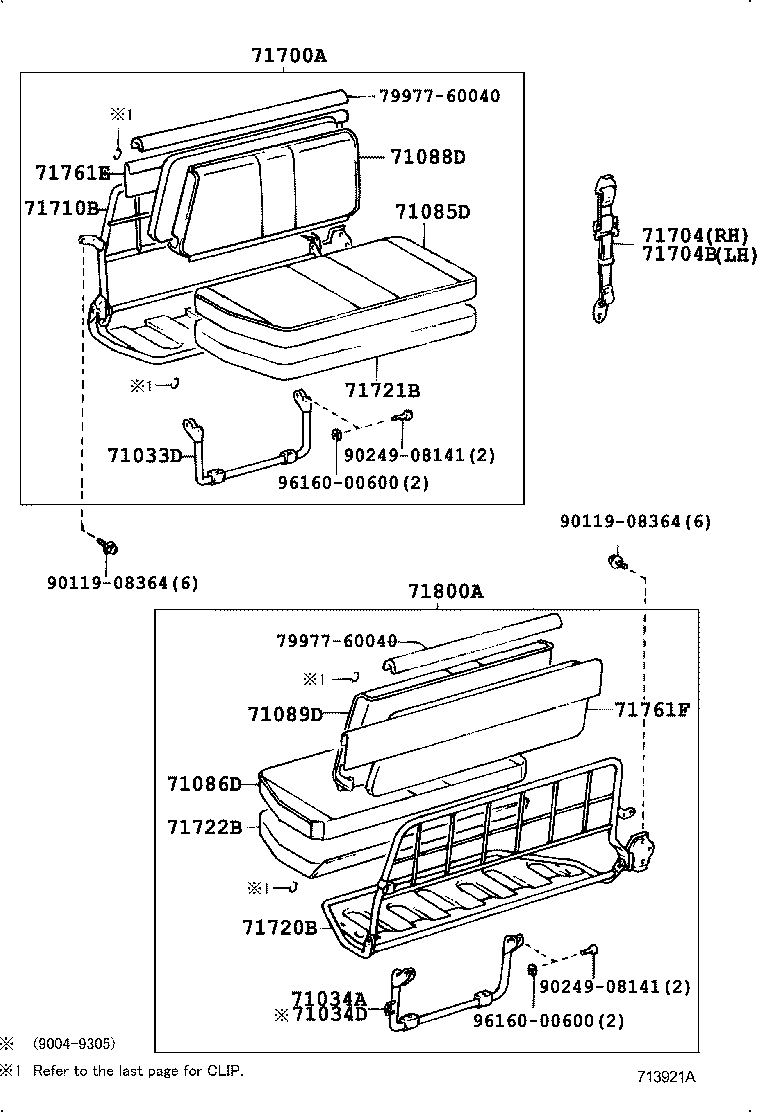

SEAT SEAT TRACK

ILLUST NO. 3 OF 3(9004- )KZJ77,LJ77,79,RJ77

 LAND CRUISER 70 |  SEAT SEAT TRACK 71033D - LEG SUB-ASSY, REAR SEAT CUSHION, NO.1 RH 71034A - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH 71034D - LEG SUB-ASSY, REAR NO.2 SIDE SEAT CUSHION, LH 71085D - COVER SUB-ASSY, REAR NO.2 SIDE SEAT CUSHION, RH 71086D - COVER SUB-ASSY, REAR NO.2 SIDE SEAT CUSHION, LH 71088D - COVER SUB-ASSY, REAR NO.2 SIDE SEAT BACK, RH 71089D - COVER SUB-ASSY, REAR NO.2 SIDE SEAT BACK, LH 71700A - SEAT ASSY, REAR SIDE, RH 71704 - BAND SUB-ASSY, REAR SIDE SEAT 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 71710B - FRAME ASSY, REAR SIDE SEAT, RH 71720B - FRAME ASSY, REAR SIDE SEAT, LH 71721B - PAD, REAR NO.2 SIDE SEAT CUSHION, RH 71722B - PAD, REAR NO.2 SIDE SEAT CUSHION, LH 71761E - PAD, REAR NO.2 SIDE SEAT BACK, RH 71761F - PAD, REAR NO.2 SIDE SEAT BACK, LH 71800A - SEAT ASSY, REAR SIDE, NO.1 LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
