TOYOTA SUPRA JZA80R-ALMVF / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

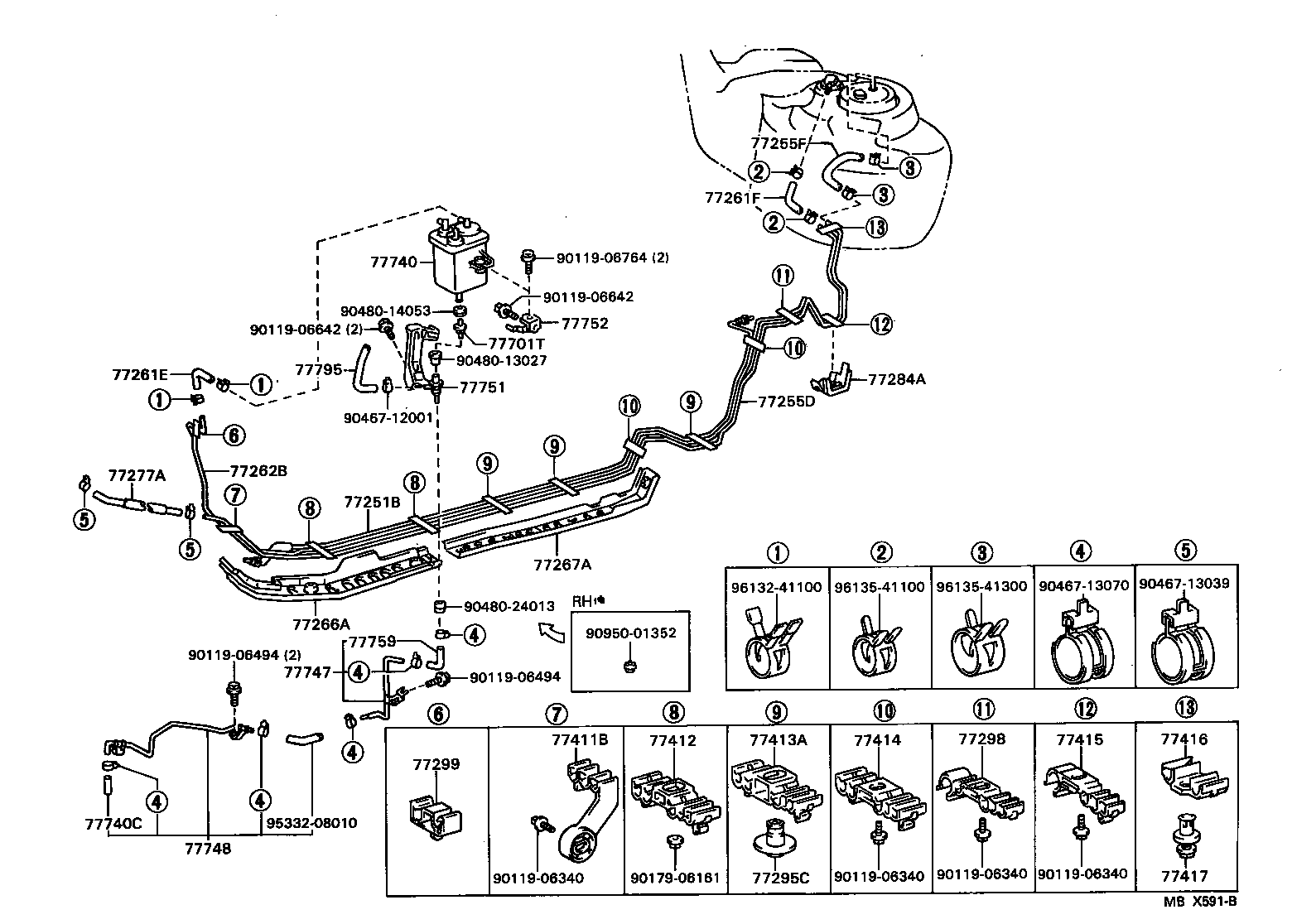

FUEL TANK TUBE

ILLUST NO. 1 OF 2(9305- )

SUPRA | FUEL TANK TUBE 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77284A - PROTECTOR, FUEL TUBE, NO.3 77295C - GROMMET, FUEL TUBE 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) 77740 - CANISTER ASSY, CHARCOAL 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77747 - PIPE, CHARCOAL CANISTER, NO.1 77748 - PIPE, CHARCOAL CANISTER, NO.2 77751 - BRACKET, CHARCOAL CANISTER BASE 77752 - BRACKET, CHARCOAL CANISTER SUPPORT 77759 - HOSE, CHARCOAL CANISTER 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
