TOYOTA TERCEL EL50R-AEMDS / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

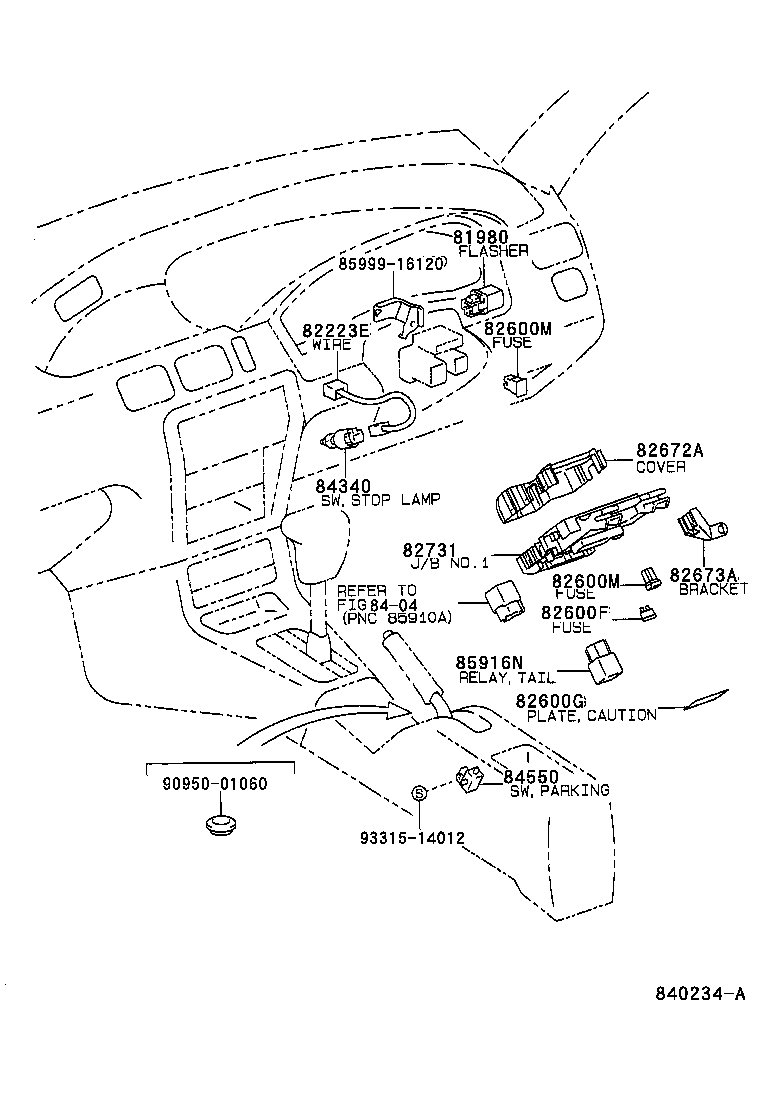

ILLUST NO. 5 OF 6(9409- )RHD

TERCEL | SWITCH RELAY COMPUTER 81980 - FLASHER ASSY, TURN SIGNAL 82223E - WIRE, CLUTCH START SWITCH 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 82600M - FUSE, MEDIUM CURRENT 82600M - FUSE, MEDIUM CURRENT 82672A - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK 82731 - BLOCK, DRIVER SIDE JUNCTION ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84550 - SWITCH ASSY, PARKING BRAKE 85916N - RELAY, TAIL LAMP ** Std Part ** Std Part ** Std Part
