TOYOTA CROWN JZS155R-AEPQF / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

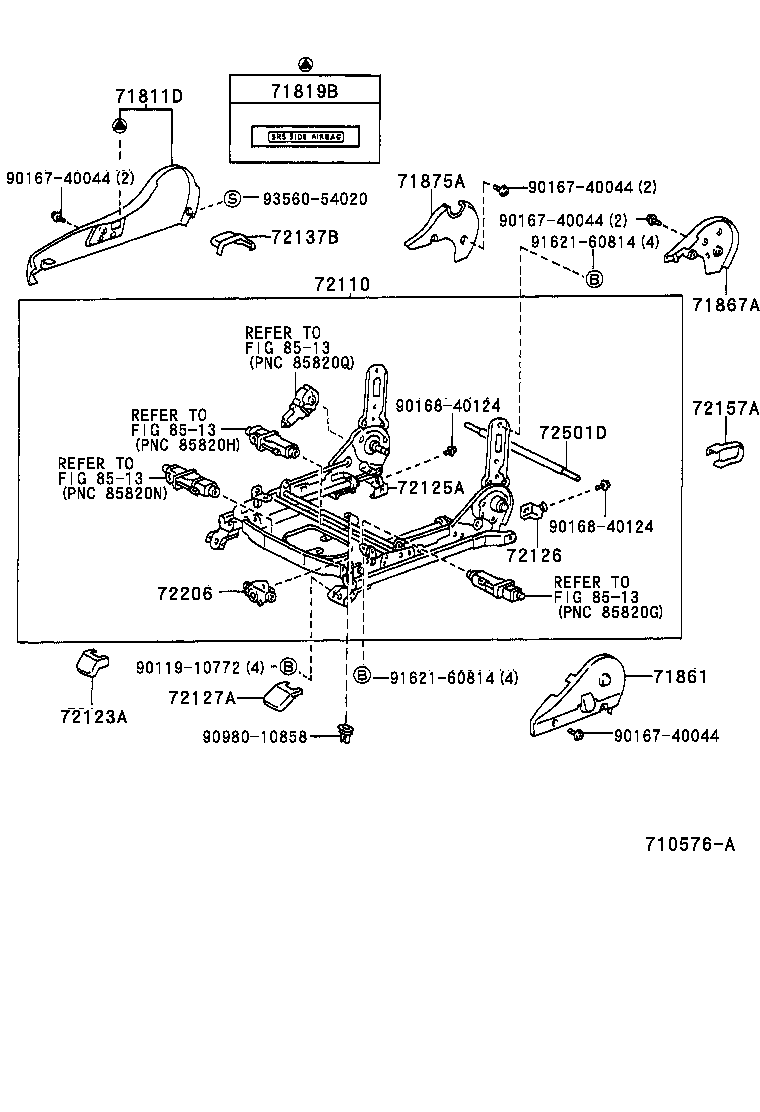

FRONT SEAT SEAT TRACK

RH SEAT ILLUST NO. 2 OF 2(9512- )RHD..SED

CROWN | FRONT SEAT SEAT TRACK 71811D - SHIELD, FRONT SEAT CUSHION, RH 71819B - LABEL, SIDE AIR BAG NAME 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 72110 - REGULATOR ASSY, POWER SEAT, RH 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72125A - COVER, SEAT TRACK, UPPER REAR 72126 - COVER, SEAT TRACK LOCK PLATE, NO.2 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72137B - COVER, SEAT TRACK, RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
