TOYOTA HILUX 4RUNNER 4WD LN107L-PRMSS / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

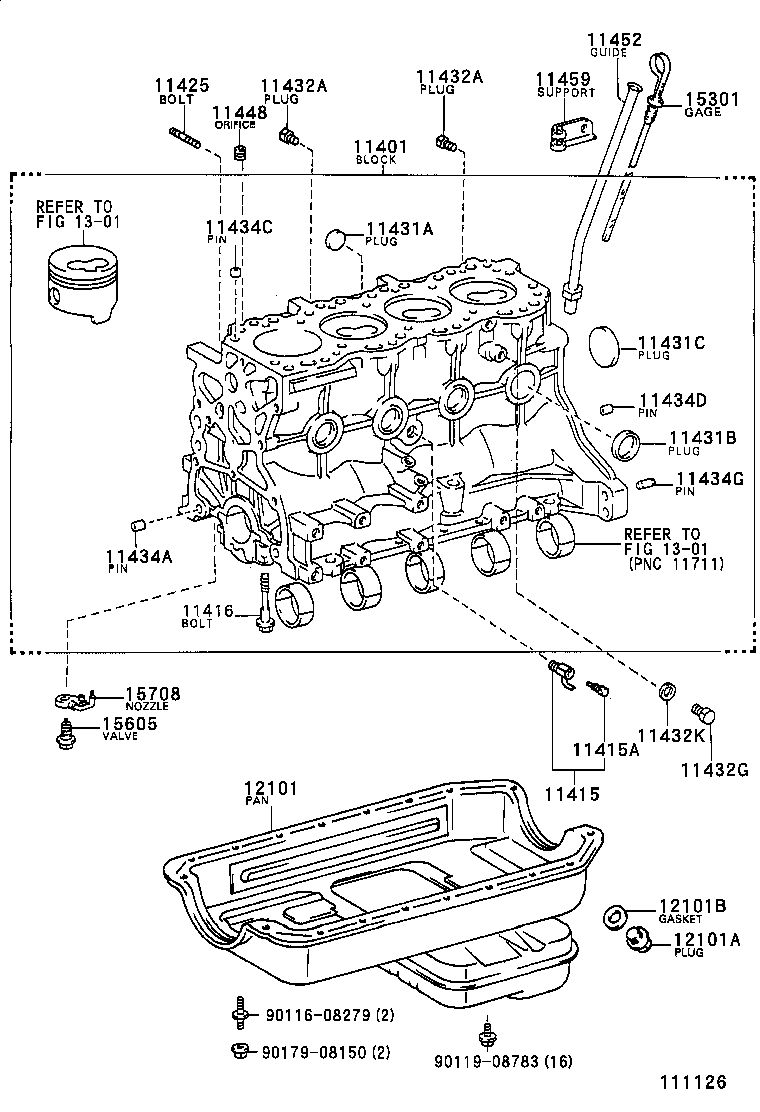

CYLINDER BLOCK

(9803-9911)3L

HILUX 4RUNNER 4WD | CYLINDER BLOCK 11401 - BLOCK SUB-ASSY, CYLINDER 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11425 - BOLT, STUD(FOR OIL FILTER) 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 11432G - PLUG, W/HEAD STRAIGHT SCREW, NO.5 11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) 11434G - PIN, STRAIGHT(FOR END PLATE) 11448 - ORIFICE, CYLINDER BLOCK OIL 11452 - GUIDE, OIL LEVEL GAGE 11459 - SUPPORT, OIL LEVEL GAGE GUIDE 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) ** Refer Fig ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL 15605 - VALVE SUB-ASSY, OIL CHECK 15708 - NOZZLE SUB-ASSY, OIL, NO.1 ** Std Part ** Std Part ** Std Part
