TOYOTA MEGA CRUISER BXD20R-HWPEW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

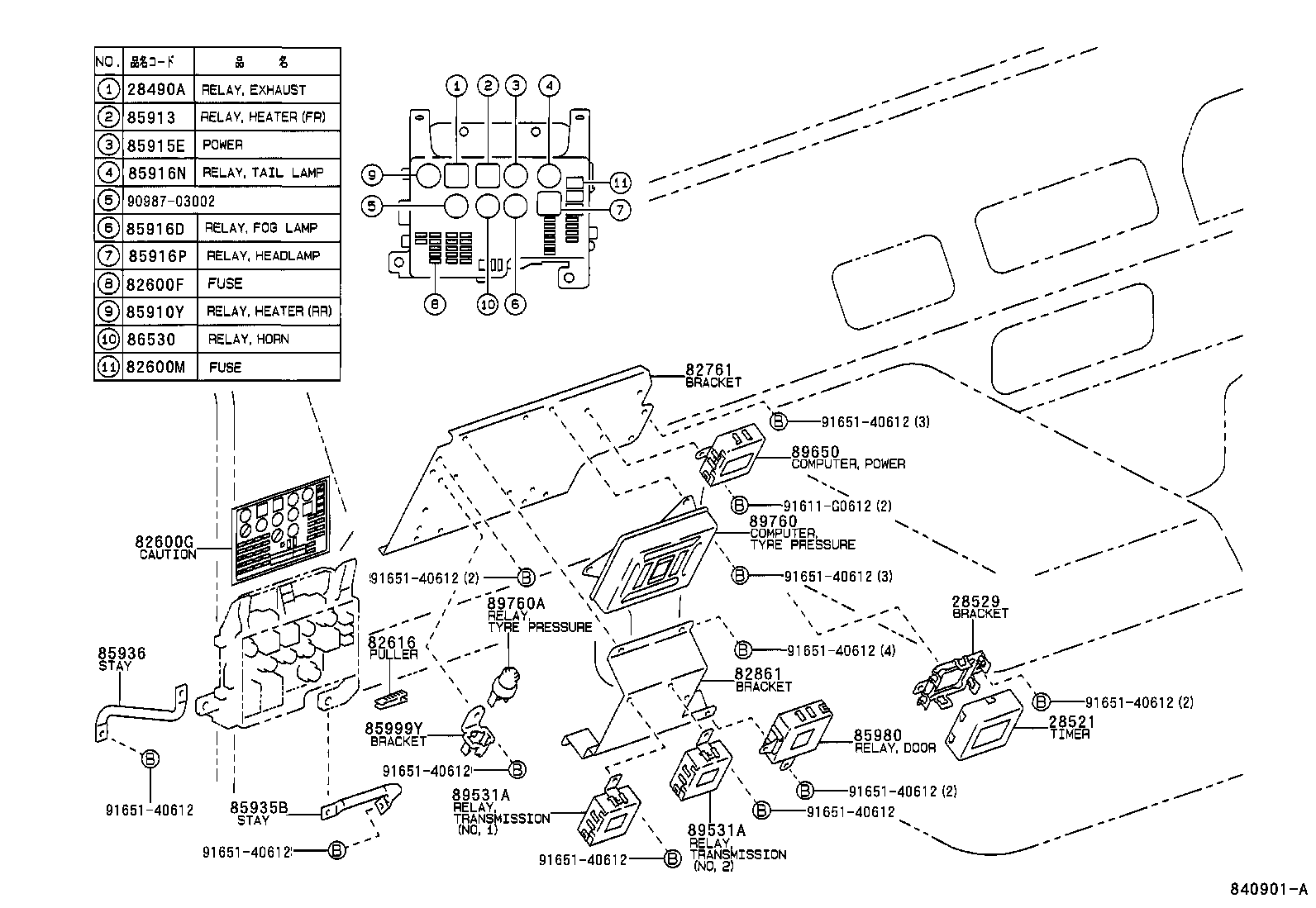

INSTRUMENT PANEL RELAY ILLUST NO. 3 OF 7(9610- )

MEGA CRUISER | SWITCH RELAY COMPUTER 28490A - RELAY ASSY, EXHAUST RETARDER 28521 - TIMER, PREHEATING 28529 - BRACKET, PREHEATING TIMER, NO.1 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 82600M - FUSE, MEDIUM CURRENT 82616 - PULLER, FUSE 82761 - BRACKET, RELAY BLOCK, NO.1 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 85910Y - RELAY, REAR HEATER 85913 - RELAY, HEATER BLOWER 85915E - RELAY 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85935B - STAY, RELAY BRACKET, NO.2 RH 85936 - STAY, RELAY BRACKET, LH 85980 - RELAY ASSY, DOOR CONTROL 85999Y - BRACKET,RELAY 86530 - RELAY ASSY, HORN 89531A - RELAY, TRANSMISSION CONTROL 89531A - RELAY, TRANSMISSION CONTROL 89650 - COMPUTER ASSY, POWER STEERING 89760 - COMPUTER ASSY, TIRE PRESSURE CONTROL 89760A - RELAY, TIRE PRESSURE CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
