TOYOTA MEGA CRUISER BXD20R-HWPEW / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

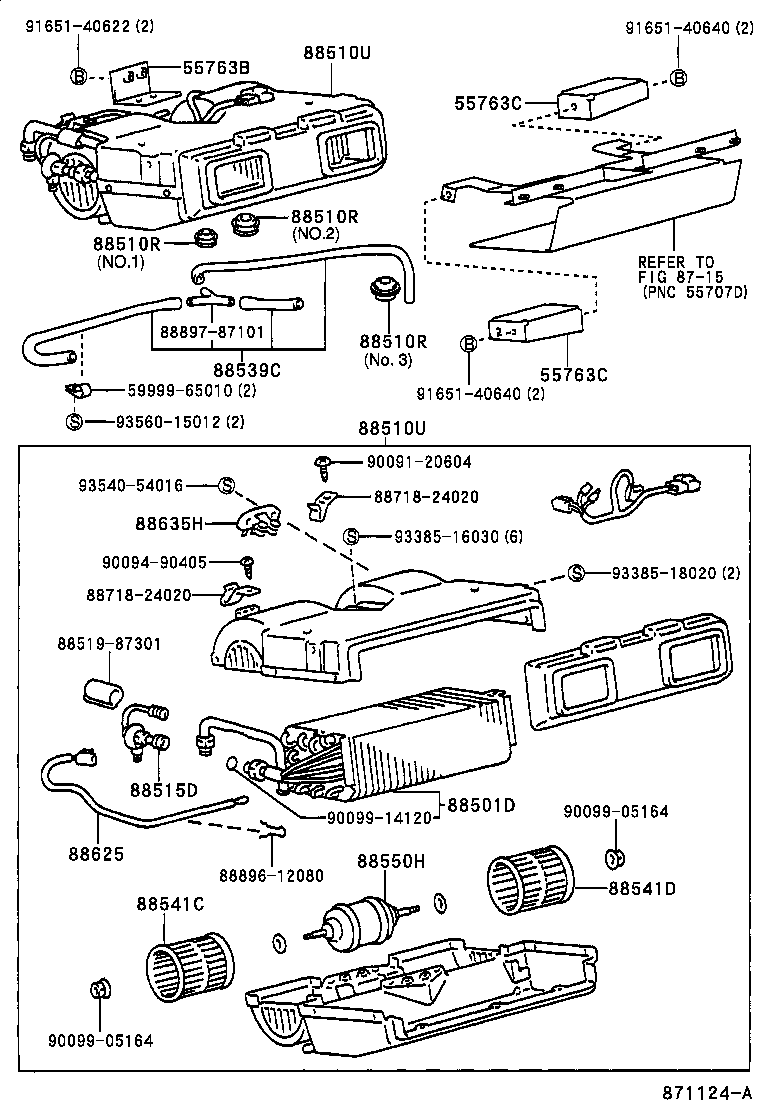

HEATING AIR CONDITIONING COOLER UNIT

ILLUST NO. 2 OF 3(9612- )HRF

MEGA CRUISER | HEATING AIR CONDITIONING COOLER UNIT 55763B - BRACKET, COOLER MOUNTING, NO.2 55763C - BRACKET, COOLER MOUNTING, NO.3 55763C - BRACKET, COOLER MOUNTING, NO.3 ** Std Part ** Refer Fig 88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2 88510R - GROMMET (FOR COOLER UNIT) 88510R - GROMMET (FOR COOLER UNIT) 88510R - GROMMET (FOR COOLER UNIT) 88510U - UNIT ASSY, COOLING (REAR) NO.2 88510U - UNIT ASSY, COOLING (REAR) NO.2 88515D - VALVE, REAR COOLING UNIT EXPANSION, NO.2 ** Std Part 88539C - HOSE, COOLER UNIT DRAIN, NO.2 88541C - FAN, BLOWER, NO.4 88541D - FAN, BLOWER, NO.5 88550H - MOTOR ASSY, BLOWER, REAR NO.2 88625 - THERMISTOR, COOLER, NO.1 88635H - RESISTOR, COOLER UNIT BLOWER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
