TOYOTA MEGA CRUISER BXD20R-HWPEW / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

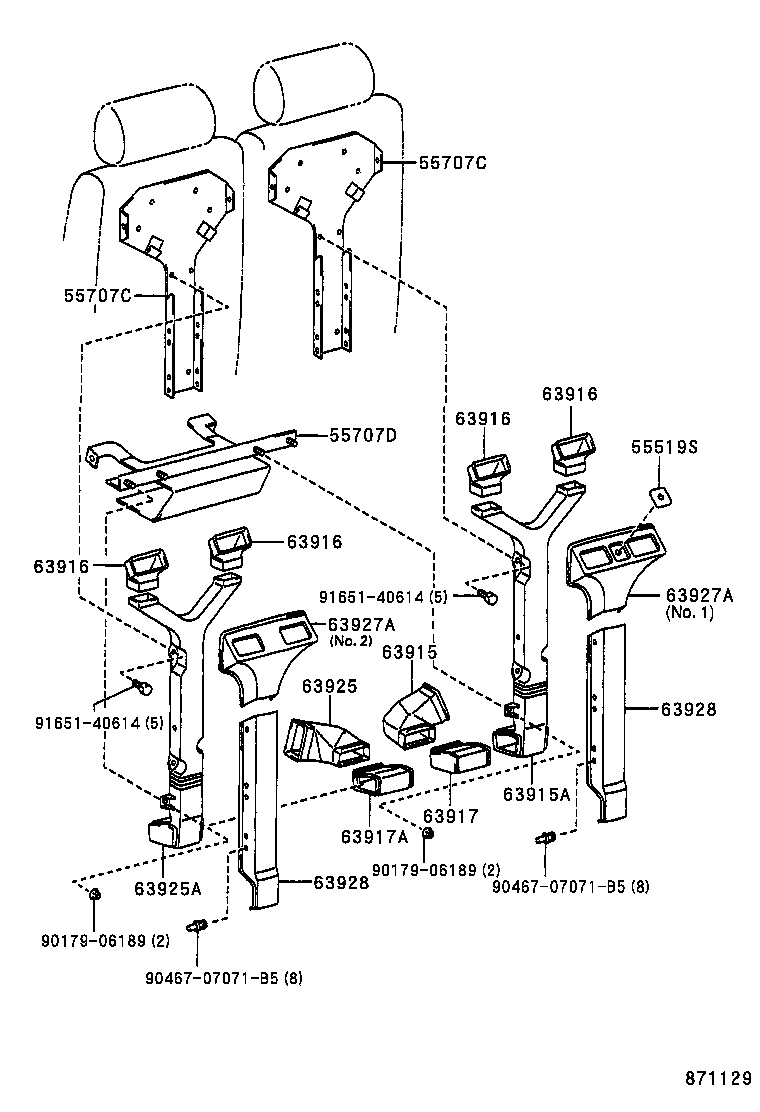

AIR DUCT ILLUST NO. 2 OF 3(9612- )HRF

MEGA CRUISER | HEATING AIR CONDITIONING CONTROL AIR DUCT 55519S - LABEL, REAR COOLER CONTROL INFORMATION 55707C - BRACKET SUB-ASSY, COOLER MOUNTING, NO.1 55707C - BRACKET SUB-ASSY, COOLER MOUNTING, NO.1 55707D - BRACKET SUB-ASSY, COOLER MOUNTING, NO.2 63915 - DUCT, COOLER, INNER NO.1 RH 63915A - DUCT, COOLER, INNER NO.2 RH 63916 - DUCT, COOLER, INNER NO.2 RH 63916 - DUCT, COOLER, INNER NO.2 RH 63916 - DUCT, COOLER, INNER NO.2 RH 63916 - DUCT, COOLER, INNER NO.2 RH 63917 - DUCT, COOLER, INNER NO.3 RH 63917A - DUCT, COOLER, INNER NO.3 LH 63925 - DUCT, COOLER, INNER NO.1 LH 63925A - DUCT, COOLER, INNER NO.2 LH 63927A - COVER, COOLER DUCT END, NO.1 63927A - COVER, COOLER DUCT END, NO.1 63928 - COVER, COOLER DUCT END, NO.2 63928 - COVER, COOLER DUCT END, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
