TOYOTA MEGA CRUISER BXD20R-HWPEW / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

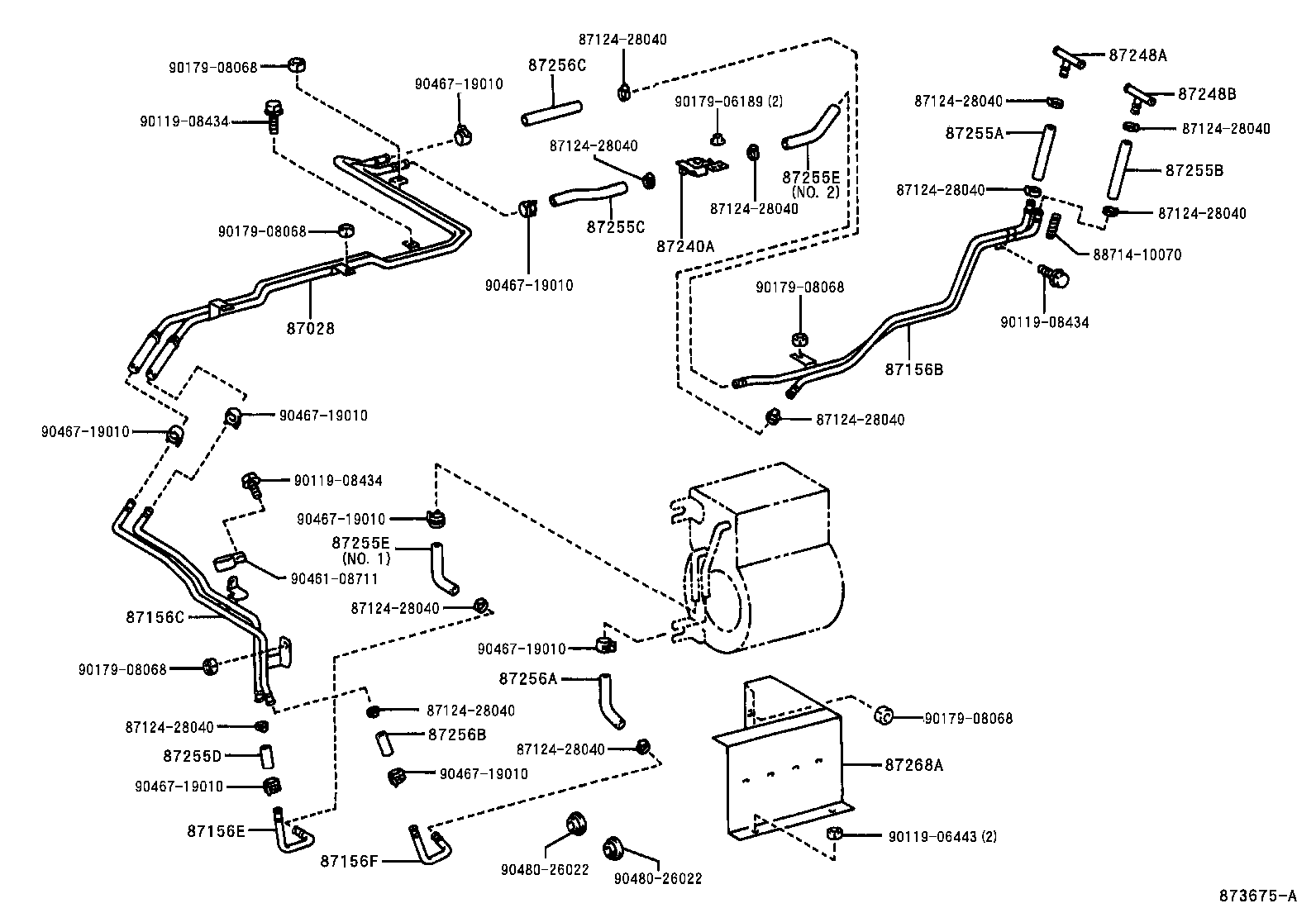

HEATING AIR CONDITIONING WATER PIPING

REAR ILLUST NO. 2 OF 2(9610- )

MEGA CRUISER | HEATING AIR CONDITIONING WATER PIPING 87028 - PIPE & HOSE SUB-ASSY, WATER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 87156B - PIPE, HEATER WATER, NO.2 87156C - PIPE, HEATER WATER, NO.1 87156E - PIPE, HEATER WATER, NO.4 87156F - PIPE, HEATER WATER, NO.5 87240A - VALVE ASSY, REAR HEATER WATER 87248A - PIPE, HEATER WATER INLET, A 87248B - PIPE, HEATER WATER INLET, B 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87255B - HOSE, REAR HEATER WATER INLET, B 87255C - HOSE, REAR HEATER WATER INLET, C 87255D - HOSE, REAR HEATER WATER INLET, D 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) 87256B - HOSE, REAR HEATER WATER OUTLET, B 87256C - HOSE, REAR HEATER WATER OUTLET, C 87268A - PROTECTOR, REAR HEATER PIPE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
