TOYOTA CROWN JZS175R-AEPQF / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

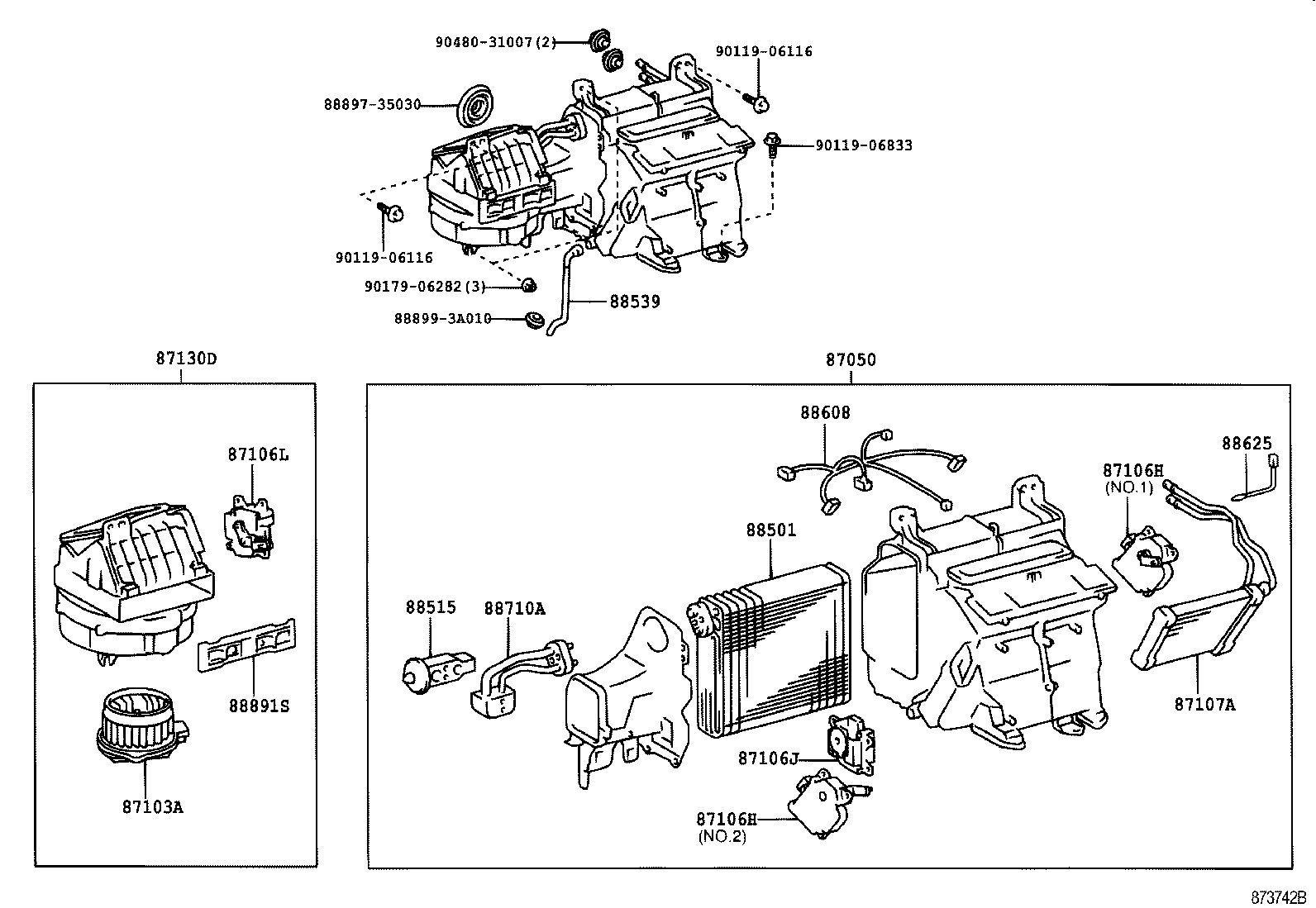

FRONT ILLUST NO. 1 OF 3(9909-0108)

 CROWN |  HEATING AIR CONDITIONING COOLER UNIT 87050 - RADIATOR ASSY, AIR CONDITIONER 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87106L - SERVO SUB-ASSY, DAMPER 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87130D - BLOWER ASSY 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER 88625 - THERMISTOR, COOLER, NO.1 88710A - TUBE ASSY, AIRCONDITIONER 88891S - COVER, COOLER, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
