TOYOTA CROWN JZS175R-AEPQF / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

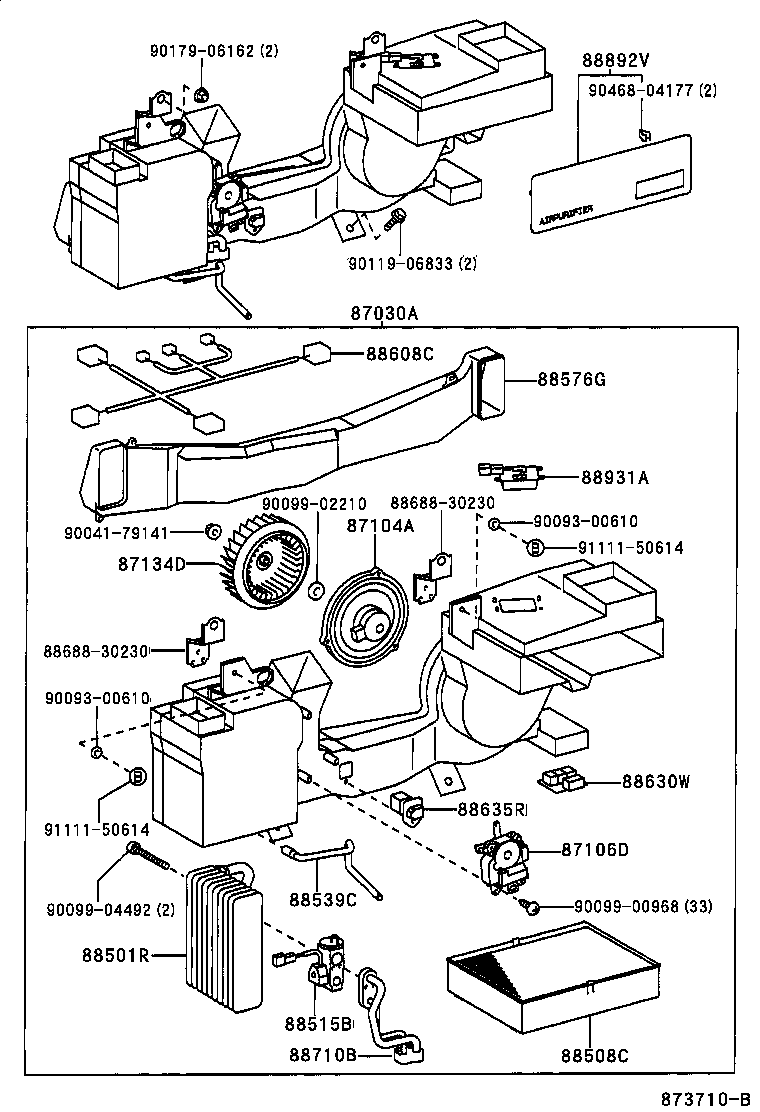

REAR ILLUST NO. 2 OF 3(9909-0108)

 CROWN |  HEATING AIR CONDITIONING COOLER UNIT 87030A - UNIT ASSY, COOLING, REAR 87104A - MOTOR SUB-ASSY, BLOWER 87106D - SERVO SUB-ASSY, DAMPER, NO.1 87134D - FAN, BLOWER, NO.2 88501R - EVAPORATOR SUB-ASSY (REAR) 88508C - FILTER SUB-ASSY, AIR 88515B - VALVE, REAR COOLING UNIT EXPANSION 88539C - HOSE, COOLER UNIT DRAIN, NO.2 88576G - DUCT, COOLER AIR, NO.3 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 88630W - RELAY ASSY 88635R - RESISTOR, BLOWER  ** Std Part  ** Std Part 88710B - TUBE ASSY, AIRCONDITIONER 88892V - COVER, AIR PURIFIER 88931A - SENSOR, SMOKE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
