TOYOTA LAND CRUISER 100 105 FZJ105R-GCMRKQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

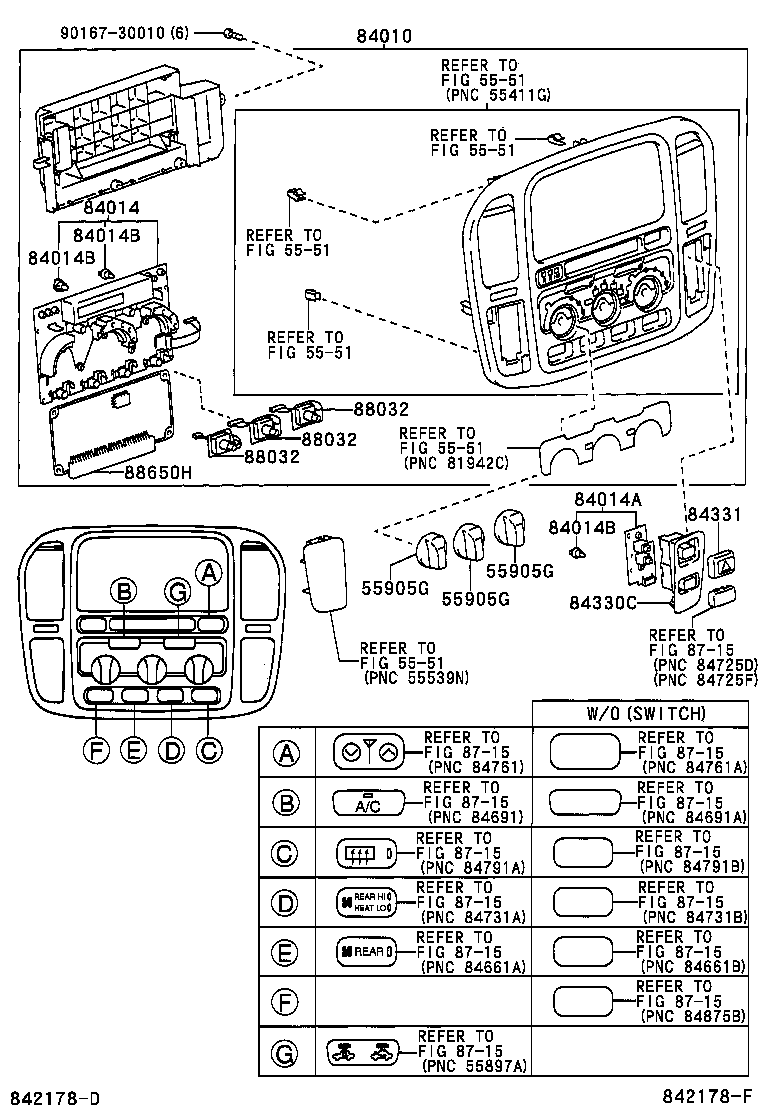

CENTER CLUSTER INTEGRATION ILLUST NO. 5 OF 9(9801-0208)RHD

LAND CRUISER 100 105 | SWITCH RELAY COMPUTER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 55905G - KNOB SUB-ASSY, CONTROL 55905G - KNOB SUB-ASSY, CONTROL 55905G - KNOB SUB-ASSY, CONTROL 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION 84014A - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 84014B - BULB, PRINTED WIRE INTEGRATION BOARD 84014B - BULB, PRINTED WIRE INTEGRATION BOARD 84014B - BULB, PRINTED WIRE INTEGRATION BOARD 84330C - COVER, HAZARD WARNING SIGNAL SWITCH 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 88032 - SWITCH, HEATER CONTROL VOLUME 88032 - SWITCH, HEATER CONTROL VOLUME 88032 - SWITCH, HEATER CONTROL VOLUME 88650H - AMPLIFIER ASSY, AIR CONDITIONER ** Std Part
