TOYOTA LAND CRUISER 100 105 UZJ100L-GCPEKV / POWERTRAIN-CHASSIS / HEIGHT CONTROL AUTO LEVELER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEIGHT CONTROL AUTO LEVELER

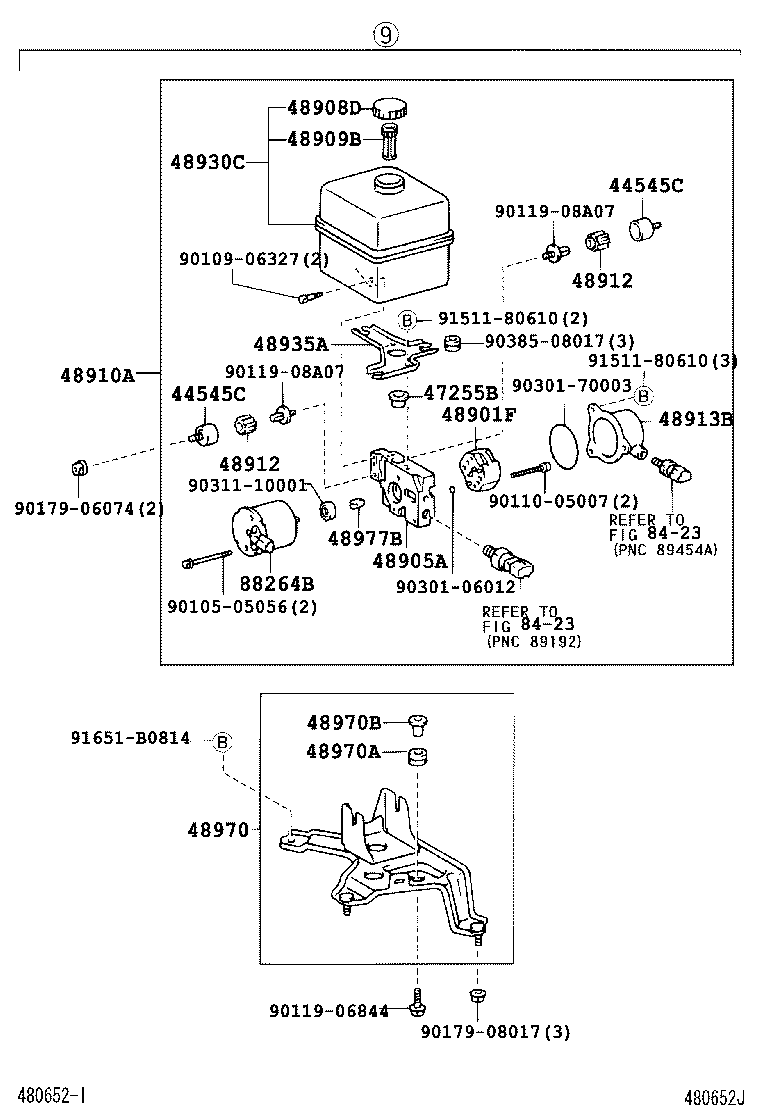

ILLUST NO. 2 OF 3(9801- )LHD..VX

LAND CRUISER 100 105 | HEIGHT CONTROL AUTO LEVELER 44545C - HOLDER, BRAKE ACTUATOR BOLT 44545C - HOLDER, BRAKE ACTUATOR BOLT 47255B - GROMMET, HEIGHT CONTROL RESERVOIR 48901F - PUMP SUB-ASSY, HEIGHT CONTROL 48905A - HOUSING SUB-ASSY, HEIGHT CONTROL 48908D - CAP SUB-ASSY, HEIGHT CONTROL RESERVOIR 48909B - STRAINER SUB-ASSY, HEIGHT CONTROL OIL 48910A - PUMP & MOTOR ASSY, HEIGHT CONTROL 48912 - BUSH, COMPRESSOR 48912 - BUSH, COMPRESSOR 48913B - COVER, HEIGHT CONTROL PUMP 48930C - RESERVOIR ASSY, HEIGHT CONTROL 48935A - BRACKET, SUSPENSION CONTROL OIL RESERVOIR 48970 - BRACKET ASSY, HEIGHT CONTROL COMPRESSOR 48970A - BUSH(FOR HEIGHT CONTROL COMPRESSOR) 48970B - SPACER(FOR HEIGHT CONTROL COMPRESSOR BRACKET) 48977B - JOINT, HEIGHT CONTROL MOTOR ** Refer Fig ** Refer Fig 88264B - MOTOR, SKID CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
