TOYOTA SPACIO AE111R-FPPEK / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

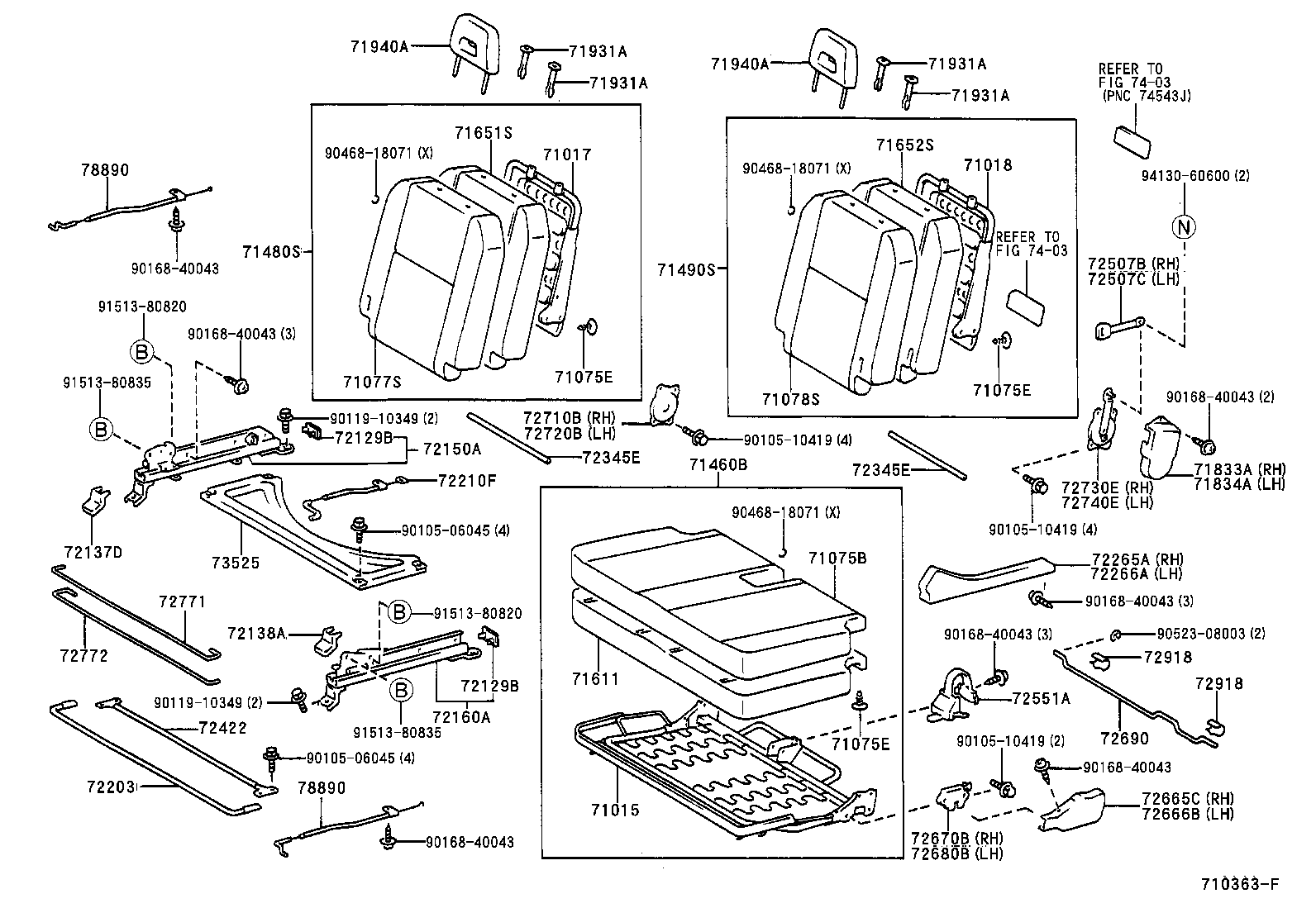

REAR SEAT SEAT TRACK

REAR NO.2 SEAT (9805- )06S

SPACIO | REAR SEAT SEAT TRACK 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71075E - CLIP(FOR REAR SEAT) 71075E - CLIP(FOR REAR SEAT) 71075E - CLIP(FOR REAR SEAT) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71611 - PAD, REAR SEAT CUSHION 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 72129B - PROTECTOR, SEAT TRACK LOWER RAIL 72129B - PROTECTOR, SEAT TRACK LOWER RAIL 72137D - COVER, REAR SEAT TRACK, RH 72138A - COVER, REAR SEAT TRACK, LH 72150A - TRACK ASSY, REAR SEAT, RH 72160A - TRACK ASSY, REAR SEAT, LH 72203 - HANDLE SUB-ASSY, REAR SEAT TRACK 72210F - CABLE ASSY, SEAT TRACK CONTROL 72265A - COVER, SEAT TRACK UPPER RAIL, RH 72266A - COVER, SEAT TRACK UPPER RAIL, LH 72345E - PIPE, RECLINING CONNECTING 72345E - PIPE, RECLINING CONNECTING 72422 - ROD, VERTICAL ADJUSTER 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH 72551A - COVER, RECLINING HINGE 72665C - COVER, REAR SEAT LOCK, RH 72666B - COVER, REAR SEAT LOCK, LH 72670B - LOCK ASSY, REAR SEAT CUSHION, RH 72680B - LOCK ASSY, REAR SEAT CUSHION, LH 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE 72710B - ADJUSTER ASSY, REAR SEAT BACK, INNER RH 72720B - ADJUSTER ASSY, REAR SEAT BACK, INNER LH 72730E - ADJUSTER ASSY, REAR SEAT BACK, OUTER RH 72740E - ADJUSTER ASSY, REAR SEAT BACK, OUTER LH 72771 - SPRING, REAR SEAT TURN NO.1 72772 - SPRING, REAR SEAT TURN NO.2 72918 - COVER, 3RD SEAT CUSHION LOCK 72918 - COVER, 3RD SEAT CUSHION LOCK 73525 - PANEL, REAR SEAT SUB FLOOR ** Refer Fig ** Refer Fig 78890 - CABLE ASSY, SUB SEAT LOCK CONTROL 78890 - CABLE ASSY, SUB SEAT LOCK CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
