TOYOTA SPACIO AE111R-FWPEK / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

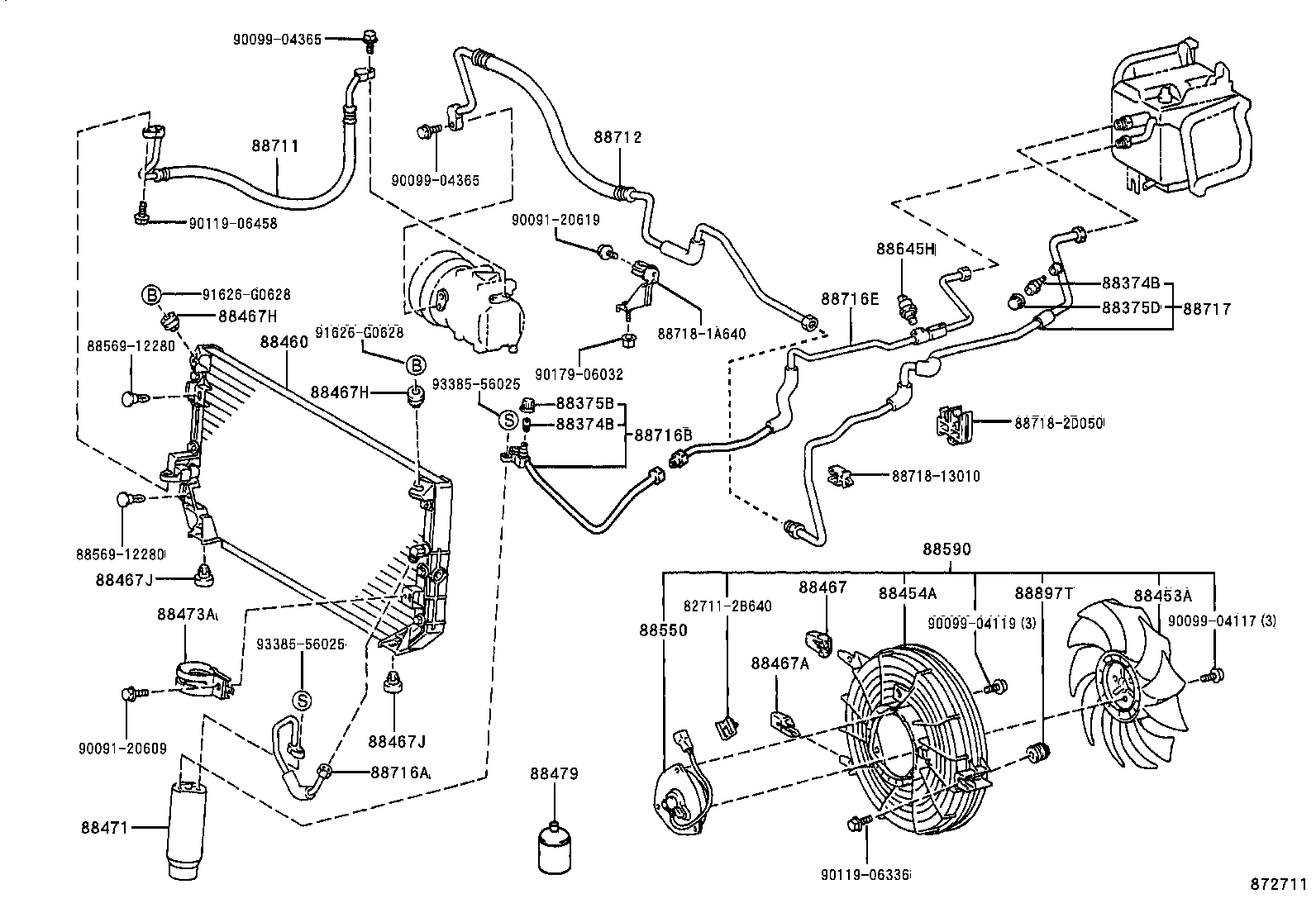

HEATING AIR CONDITIONING COOLER PIPING

DEALER OPTION ILLUST NO. 1 OF 2(9805- )

SPACIO | HEATING AIR CONDITIONING COOLER PIPING ** Std Part 88374B - VALVE, SERVICE, NO.1 88374B - VALVE, SERVICE, NO.1 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88453A - FAN, COOLING 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467A - CUSHION, COOLER CONDENSER, NO.2 88467H - CUSHION, CONDENSER BRACKET, NO.1 88467H - CUSHION, CONDENSER BRACKET, NO.1 88467J - CUSHION, CONDENSER BRACKET, NO.2 88467J - CUSHION, CONDENSER BRACKET, NO.2 88471 - TANK, RECEIVER AIR CONDITIONER 88473A - HOLDER, RECEIVER 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) ** Std Part ** Std Part 88590 - BLOWER ASSY, W/SHROUD 88645H - SWITCH, PRESSURE NO.1 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 ** Std Part ** Std Part ** Std Part 88897T - GROMMET, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
