TOYOTA CROWN JZS175R-AEPQF / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

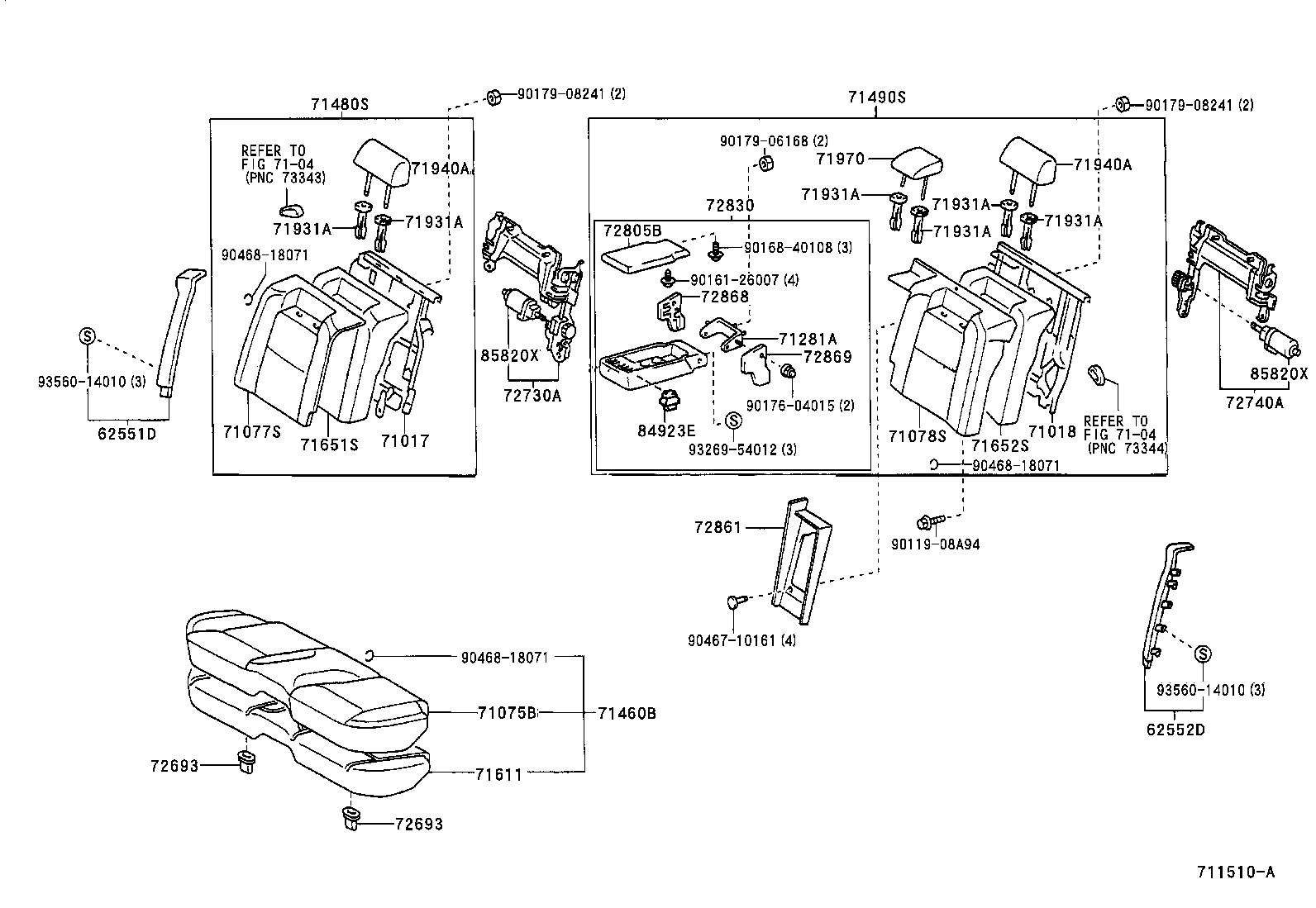

REAR SEAT SEAT TRACK

(9909-0108)

CROWN | REAR SEAT SEAT TRACK 62551D - GARNISH, REAR SEAT SIDE, RH 62552D - GARNISH, REAR SEAT SIDE, LH 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71281A - HINGE, REAR SEAT CENTER ARMREST 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71611 - PAD, REAR SEAT CUSHION 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 71970 - HEADREST ASSY, REAR SEAT 72693 - HOOK, REAR SEAT CUSHION LOCK 72693 - HOOK, REAR SEAT CUSHION LOCK 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST 72830 - ARMREST ASSY, REAR SEAT, CENTER 72861 - TRIM, CENTER ARMREST CORNER 72868 - COVER, CENTER ARMREST HINGE, RH 72869 - COVER, CENTER ARMREST HINGE, LH 84923E - SWITCH, REAR POWER SEAT 85820X - MOTOR ASSY, POWER SEAT 85820X - MOTOR ASSY, POWER SEAT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
