TOYOTA AVALON MCX20L-AEPGKV / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

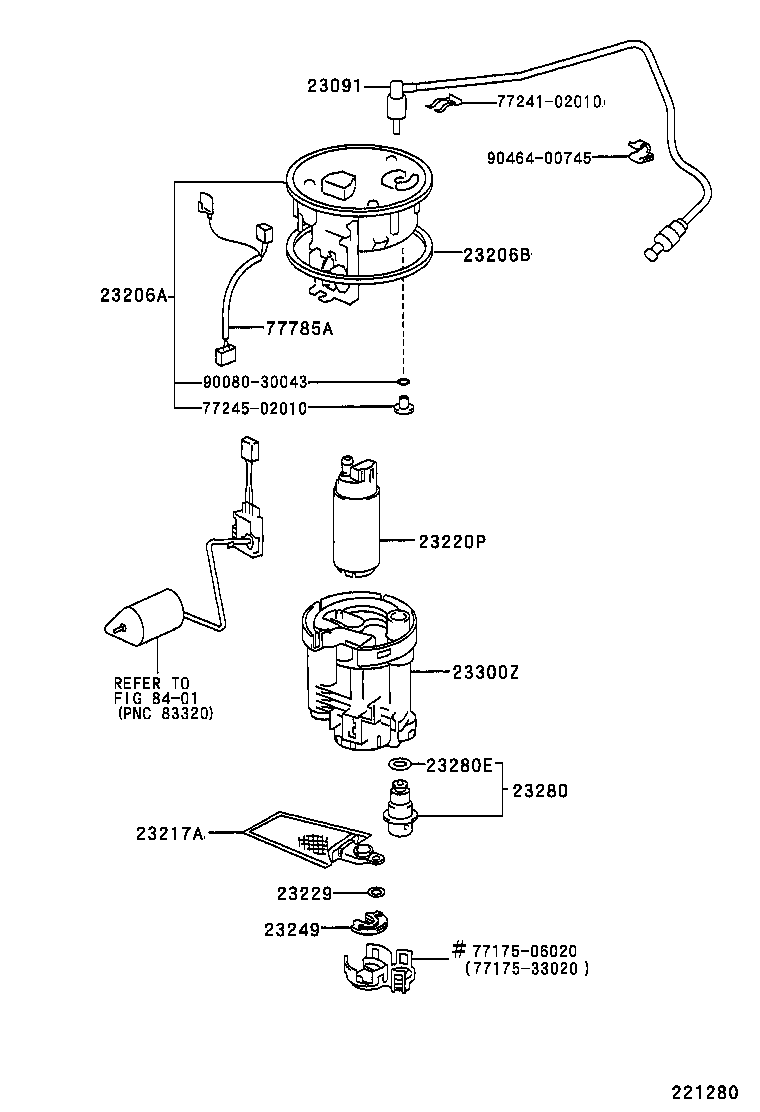

FUEL INJECTION SYSTEM

ILLUST NO. 2 OF 2(0206- )

AVALON | FUEL INJECTION SYSTEM 23091 - TUBE SUB-ASSY, FUEL PUMP 23206A - BRACKET, FUEL PUMP 23206B - GASKET, FUEL PUMP BRACKET 23217A - FILTER, FUEL PUMP 23220P - PUMP ASSY, FUEL 23229 - CLIP(FOR FUEL PUMP FILTER) 23249 - RUBBER, CUSHION(FOR FUEL PUMP) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23300Z - FILTER, FUEL(FOR FUEL TANK) ** Std Part ** Std Part ** Std Part ** Std Part 77785A - HARNESS, FUEL PUMP ** Refer Fig ** Std Part ** Std Part
