TOYOTA CELICA ZZT231R-BLPGFQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

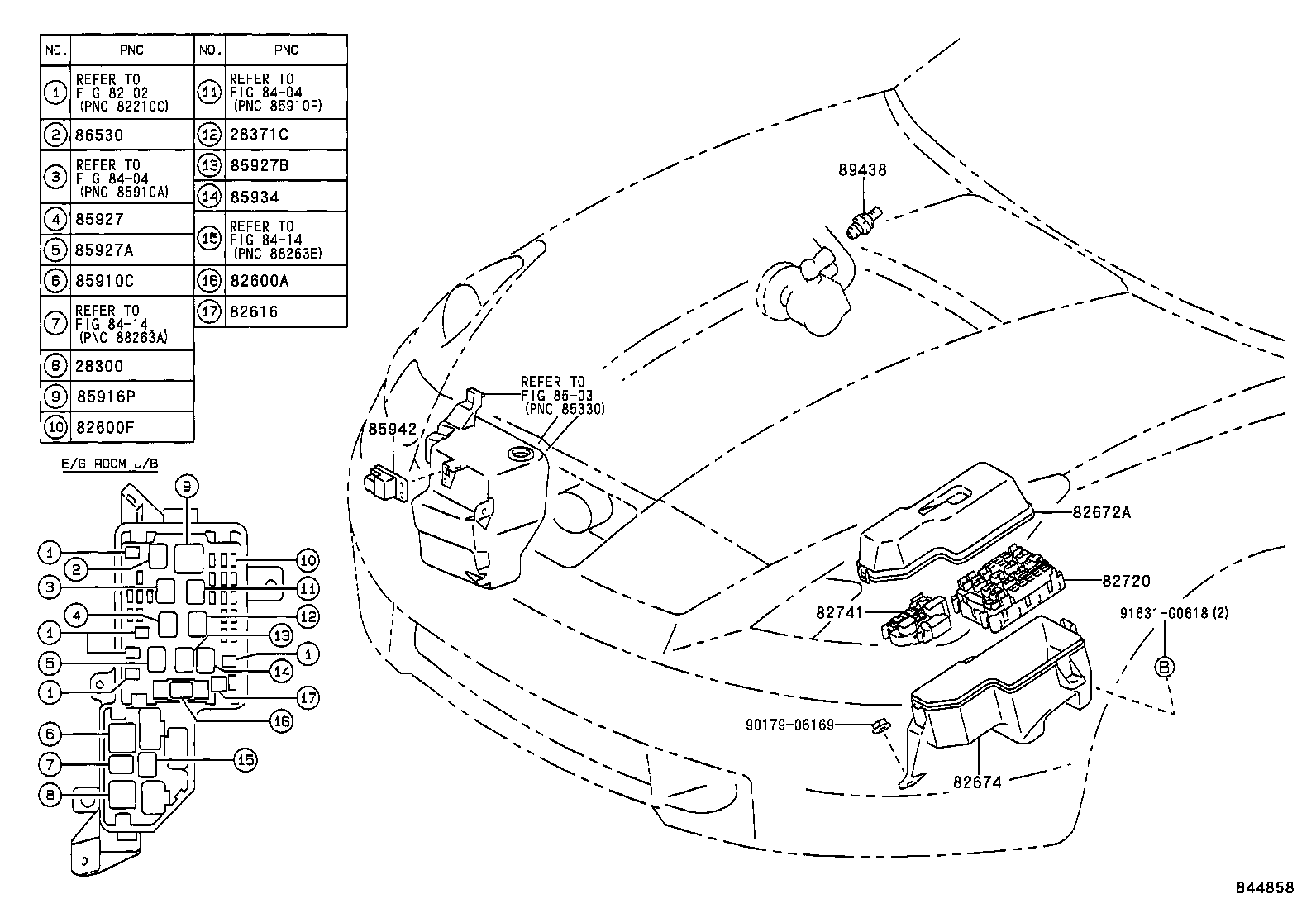

SWITCH RELAY COMPUTER

ENGINE ROOM ILLUST NO. 2 OF 6(9908-0509)

CELICA | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371C - RELAY, IGNITION, NO.2 ** Refer Fig 82600A - FUSE, HIGH CURRENT 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82672A - COVER, JUNCTION BLOCK 82674 - COVER, JUNCTION BLOCK LOWER 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION 82741 - BLOCK, ENGINE ROOM RELAY ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85934 - RELAY, MAGNET-CLUTCH 85942 - RELAY, HEADLAMP CLEANER CONTROL 86530 - RELAY ASSY, HORN 89438 - SWITCH, POWER STEERING OIL PRESSURE ** Std Part ** Std Part
