TOYOTA CELICA ZZT231R-BLPGFQ / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SHIFT LEVER RETAINER

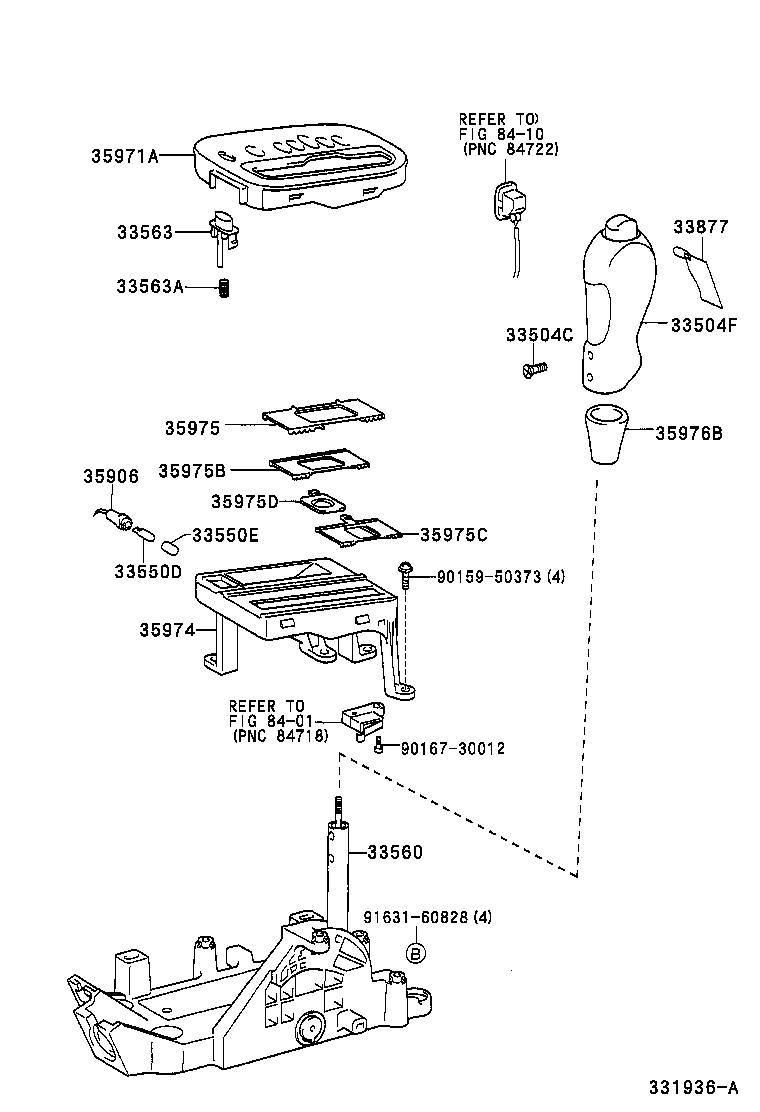

ILLUST NO. 1 OF 2(0208- )4FC

CELICA | SHIFT LEVER RETAINER 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33560 - UNIT ASSY, SHIFT LOCK CONTROL 33563 - BUTTON, SHIFT LOCK RELEASE 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35971A - HOUSING, POSITION INDICATOR, UPPER 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35975B - COVER, SLIDE, NO.2(FOR POSITION INDICATOR) 35975C - COVER, SLIDE, NO.3(FOR POSISION INDICATOR) 35975D - COVER, SLIDE, NO.4(FOR POSITION INDICATOR) 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
