TOYOTA CELICA ZZT231R-BLPGFQ / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

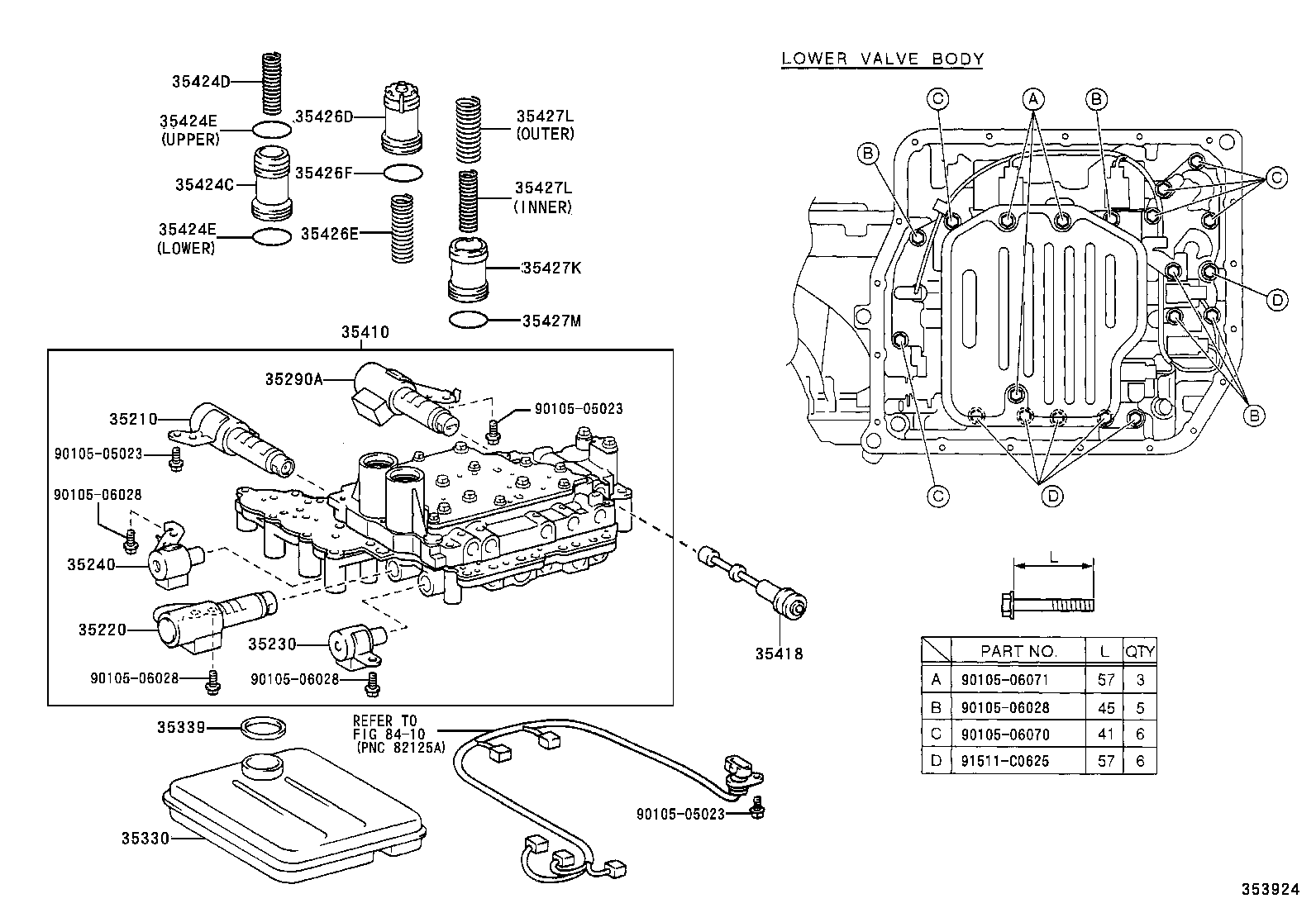

VALVE BODY OIL STRAINER ATM

U240E ILLUST NO. 1 OF 2(0208-0509)4FC

CELICA | VALVE BODY OIL STRAINER ATM 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL 35330 - STRAINER ASSY, VALVE BODY OIL 35339 - GASKET, OIL STRAINER 35410 - BODY ASSY, TRANSMISSION VALVE 35418 - VALVE, MANUAL 35424C - PISTON, C-1 ACCUMULATOR 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35426D - PISTON, C-3 ACCUMULATOR 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) 35427K - PISTON, B-3 ACCUMULATOR 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
