TOYOTA HILUX KZN165R-PRMSTT / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

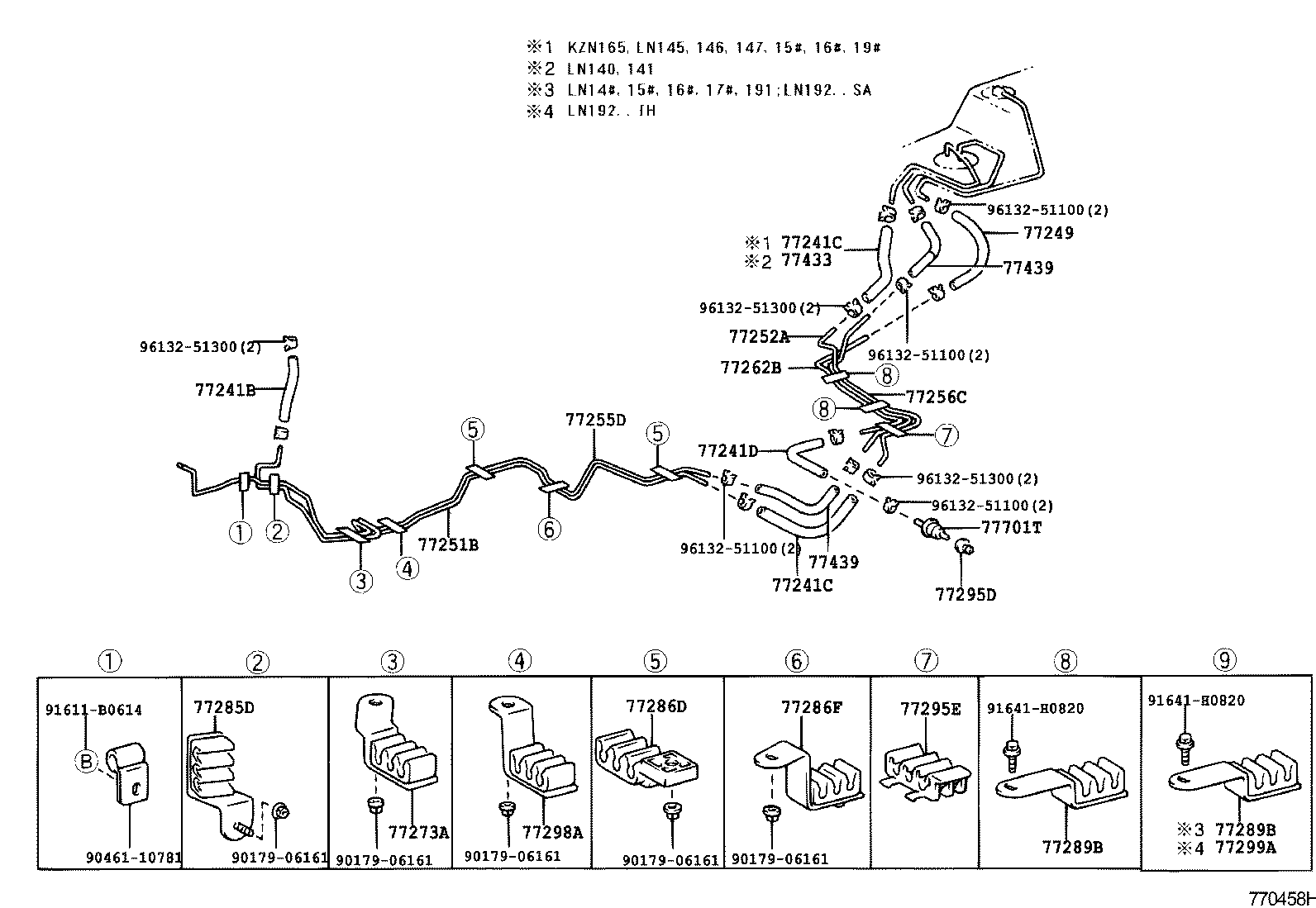

FUEL TANK TUBE

ILLUST NO. 2 OF 2(9708- )KZN165,190,LN14#,15#,16#,17#,19#

HILUX | FUEL TANK TUBE 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) 77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1) 77249 - HOSE, FUEL EMISSION 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77255D - TUBE, FUEL RETURN 77256C - TUBE, FUEL RETURN, NO.2 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 77285D - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77286F - CLAMP, FUEL TUBE, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77289B - CLAMP, FUEL TUBE, NO.3 77295D - GROMMET, FUEL TUBE 77295E - GROMMET, FUEL TUBE 77298A - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77433 - HOSE, FUEL MAIN, NO.1 77439 - HOSE, FUEL RETURN 77439 - HOSE, FUEL RETURN 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
