TOYOTA LAND CRUISER 80 FZJ80L-GNPEK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

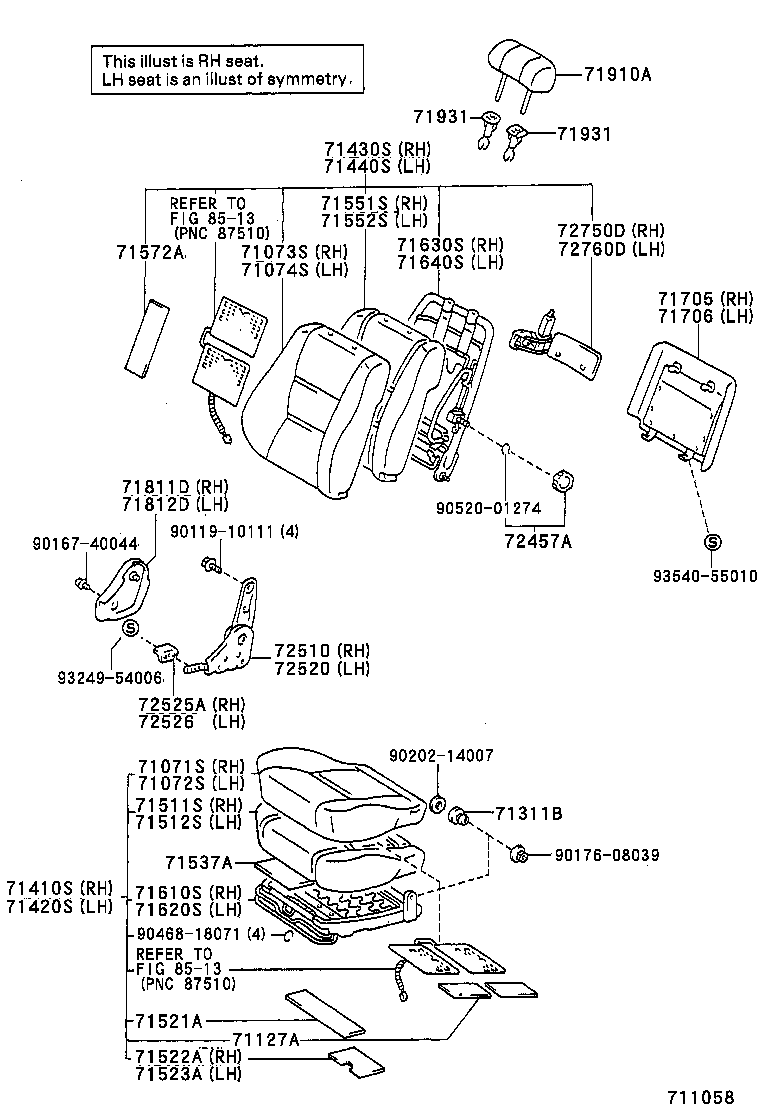

SEAT SEAT TRACK

COLD SPEC ILLUST NO. 1 OF 4(9711- )VX

 LAND CRUISER 80 |  SEAT SEAT TRACK 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71127A - PLATE, FR0NT SEAT CUSHION COVER SET 71311B - BUSH (FOR FRONT SEAT HINGE PIN) 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71521A - PAD,FRONT SEAT CUSHION SILENCER 71522A - PAD, FRONT SEAT CUSHION SILENCER, B 71523A - PAD, FRONT SEAT CUSHION SILENCER, C 71537A - PROTECTOR, FRONT SEAT CUSHION 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71572A - PAD, FRONT SEAT BACK SILENCER, B 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71811D - SHIELD, FRONT SEAT CUSHION, RH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72457A - KNOB, SEAT ADJUSTER 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
